Removal [07/2020 - ]: Procedure

  1. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

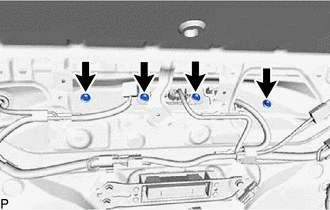

    1. Remove the 4 bolts.
      GTY1013726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

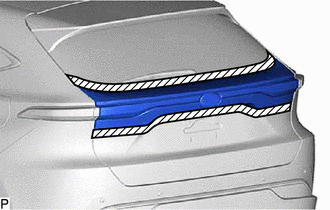

    2. Apply protective tape around the back door outside garnish sub-assembly with light as shown in the illustration.
      GTY1013426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

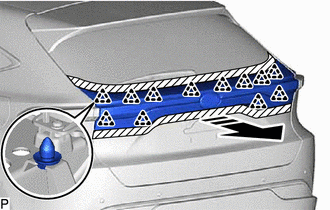

    3. Disengage the 12 clips as shown in the illustration.
      GTY1014552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

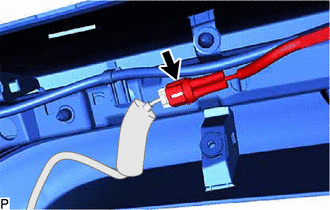

    4. Disconnect the connector to remove the back door outside garnish sub-assembly with light.
      GTY1013734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
