Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022]

  2. REMOVE ROOF RACK ASSEMBLY

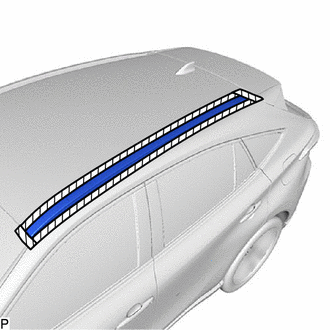

    1. Apply protective tape around the roof rack assembly.
      GTY1014748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

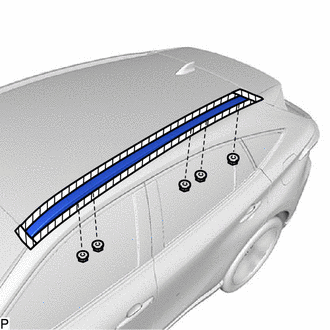

    2. Remove the 5 nuts.
      GTY1013986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

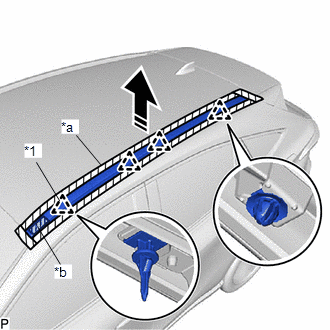

    3. Disengage the 3 clips as shown in the illustration.
      GTY1013419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Roof Rack Retainer
      *a Protective Tape
      *b Double-sided Tape
      Remove in this Direction
      NOTE:

      If the roof rack assembly has been removed, replace the clip with a new one.

    4. Disengage the front roof rack retainer and separate the double-sided tape to remove the roof rack assembly as shown in the illustration.
  3. REMOVE ROOF SIDE RAIL GARNISH PAD

    HINT:

    When removing the roof side rail garnish pad, heat the front roof side garnish sub-assembly and roof side rail garnish pad using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Roof Side Garnish Sub-assembly 20 to 30°C (68 to 86°F)
    Roof Side Rail Garnish Pad
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front roof side garnish sub-assembly and roof side rail garnish pad excessively.

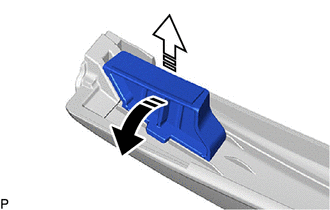

    1. Remove the roof side rail garnish pad as shown in the illustration.
      GTY1017150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  4. REMOVE FRONT ROOF RACK RETAINER

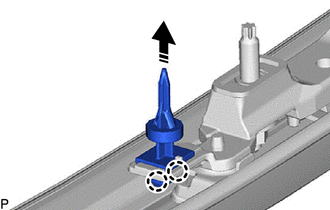

    1. Disengage the 2 claws as shown in the illustration to remove the front roof rack retainer.
      GTY1014635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE NO. 1 SIDE ROOF GARNISH LID

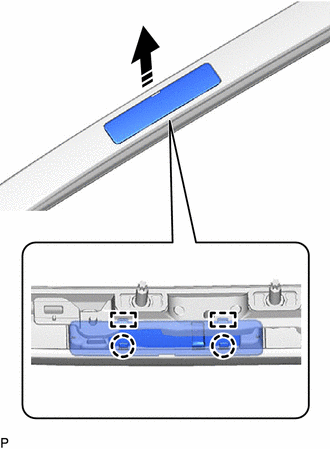

    1. Disengage the 2 claws and 2 guides as shown in the illustration to remove the No. 1 side roof garnish lid.
      GTY1014394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE NO. 2 SIDE ROOF GARNISH LID

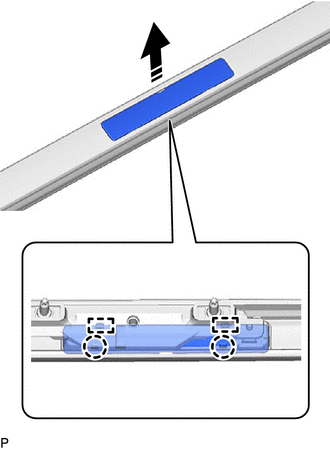

    1. Disengage the 2 claws and 2 guides as shown in the illustration to remove the No. 2 side roof garnish lid.
      GTY1013711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE NO. 3 SIDE ROOF GARNISH LID

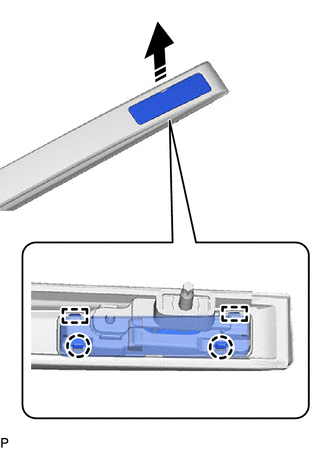

    1. Disengage the 2 claws and 2 guides as shown in the illustration to remove the No. 3 side roof garnish lid.
      GTY1014383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT ROOF RACK LEG

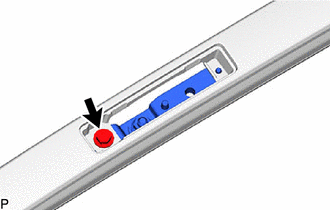

    1. Remove the bolt.
      GTY1013948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

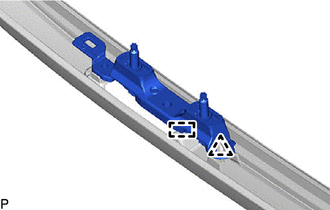

    2. Disengage the clip and guide to remove the front roof rack leg.
      GTY1013942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR ROOF RACK LEG

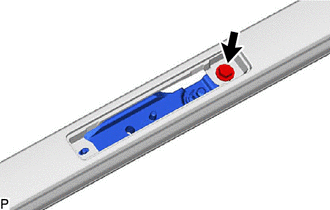

    1. Remove the bolt.
      GTY1013947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

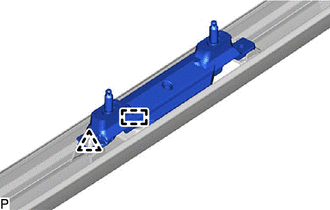

    2. Disengage the clip and guide to remove the rear roof rack leg.
      GTY1013954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 REAR ROOF RACK LEG

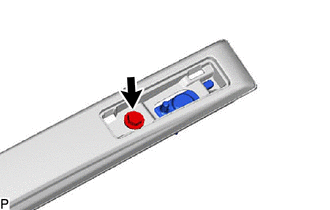

    1. Remove the bolt.
      GTY1013944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

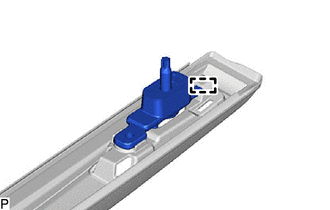

    2. Disengage the guide to remove the No. 2 rear roof rack leg.
      GTY1013953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 ROOF CARRIER SEAL

    HINT:

    When removing the No. 2 roof carrier seal, heat the front roof rack leg, rear roof rack leg and No. 2 roof carrier seal using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Roof Rack Leg 20 to 30°C (68 to 86°F)
    Rear Roof Rack Leg
    No. 2 Roof Carrier Seal
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front roof rack leg, rear roof rack leg and No. 2 roof carrier seal excessively.

    1. For Front Side:
      1. Remove the 2 No. 2 roof carrier seals.
        GTY1013952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For Center:
      1. Remove the 2 No. 2 roof carrier seals.
        GTY1013938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. For Rear Side:
      1. Remove the No. 2 roof carrier seal.
        GTY1013920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
