Reassembly [07/2020 - ]: Procedure

HINT:

When installing the No. 3 rear spoiler protector, heat the rear spoiler using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rear spoiler surface.
   1. Using a heat light, heat the rear spoiler surface.
   2. Remove any remaining double-sided tape from the rear spoiler.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a heat light, heat the rear spoiler.
3. Remove the release paper from 3 new No. 3 rear spoiler protectors.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

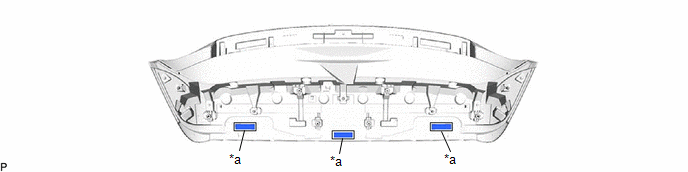

4. Install the 3 No. 3 rear spoiler protectors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   -

   -

   HINT:

   Install the No. 3 rear spoiler protector along the line on the rear spoiler.

HINT:

When installing the No. 2 rear spoiler protector, heat the rear spoiler using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rear spoiler surface.
   1. Using a heat light, heat the rear spoiler surface.
   2. Remove any remaining double-sided tape from the rear spoiler.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a heat light, heat the rear spoiler.
3. Remove the release paper from 8 new No. 2 rear spoiler protectors.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

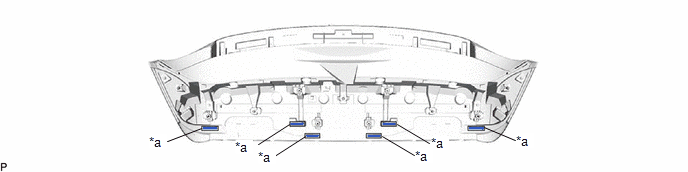

4. Install the 8 No. 2 rear spoiler protectors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   -

   -

   HINT:

   Install the No. 2 rear spoiler protector along the line on the rear spoiler.

HINT:

When installing the No. 1 rear spoiler protector, heat the rear spoiler using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rear spoiler surface.
   1. Using a heat light, heat the rear spoiler surface.
   2. Remove any remaining double-sided tape from the rear spoiler.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a heat light, heat the rear spoiler.
3. Remove the release paper from 6 new No. 1 rear spoiler protectors.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

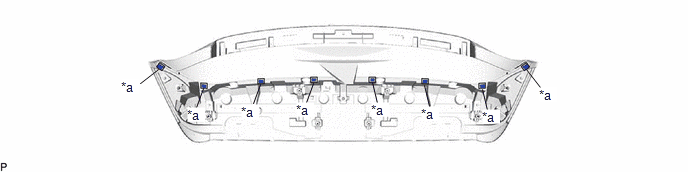

4. Install the 6 No. 1 rear spoiler protectors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   -

   -

   HINT:

   Install the No. 1 rear spoiler protector along the line on the rear spoiler.

1. Install the center stop light cord assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For Short Type:

Refer to PROCEDURE - Step 1

For Long Type:

Refer to PROCEDURE - Step 1
