Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION (w/ Kick Sensor)
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD (w/ Kick Sensor)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER (w/ Kick Sensor)

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Kick Sensor)

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR COMBINATION LIGHT COVER LH

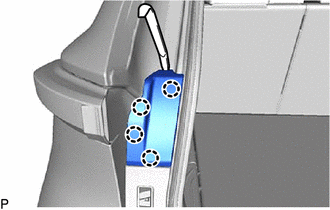

    1. Using a moulding remover, disengage the 4 claws as shown in the illustration to remove the rear combination light cover LH.
      GTY1014375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE REAR BUMPER ASSEMBLY

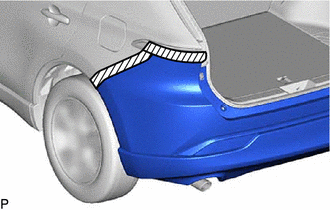

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY1014370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

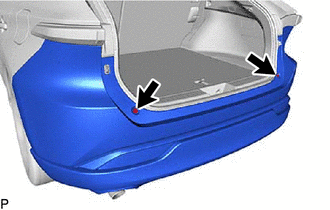

    2. Remove the 2 rear bumper upper stoppers.
      GTY1014373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

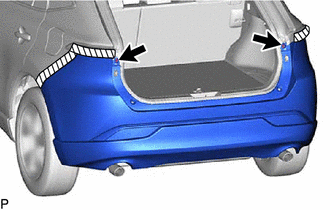

    3. Remove the 2 screws.
      GTY1014379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

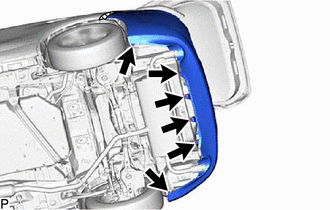

    4. Remove the 6 clips.
      GTY1014378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

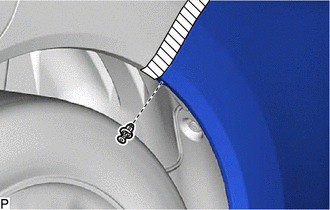

    5. Remove the clip.
      GTY1014377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

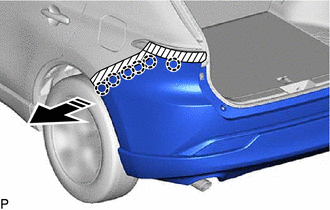

    6. Disengage the 6 claws as shown in the illustration.
      GTY1014106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

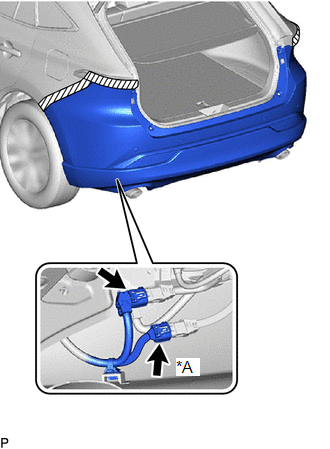

    7. Disconnect each connector.
      GTY1114711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Kick Sensor

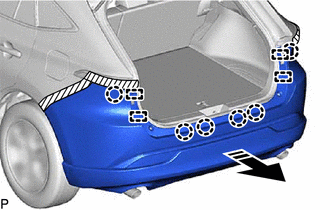

    8. Disengage the 6 claws and 4 guides as shown in the illustration to remove the rear bumper assembly.
      GTY1014657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
