Components [07/2020 - ]

Fig 1: Rear Bumper Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Kick Sensor	-	-
*1	BATTERY HOLE COVER	*2	REAR NO. 2 FLOOR BOARD

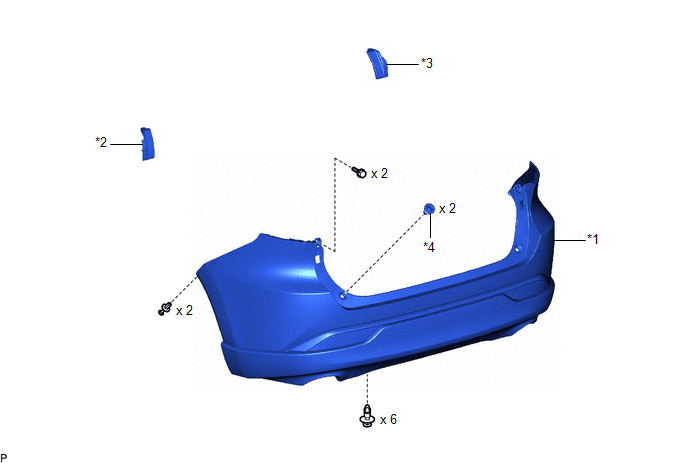

Fig 2: Rear Bumper Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR BUMPER ASSEMBLY	*2	REAR COMBINATION LIGHT COVER LH
*3	REAR COMBINATION LIGHT COVER RH	*4	REAR BUMPER UPPER STOPPER

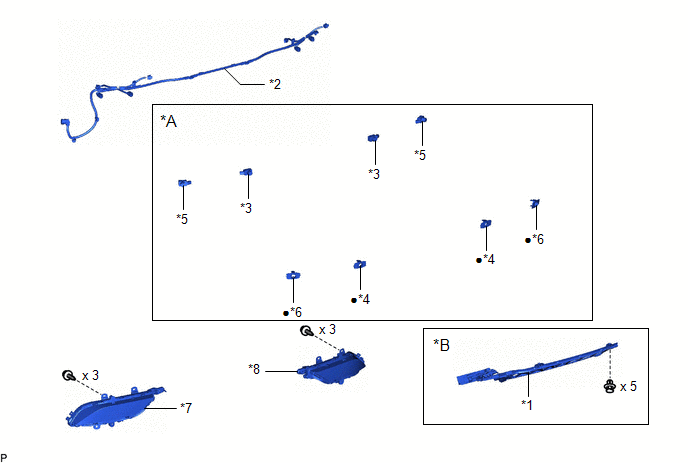

Fig 3: Rear Bumper Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Intuitive Parking Assist System	*B	w/ Kick Sensor
*1	KICK DOOR CONTROL SENSOR WITH BRACKET	*2	NO. 2 LUGGAGE ROOM WIRE
*3	REAR CENTER ULTRASONIC SENSOR	*4	REAR CENTER ULTRASONIC SENSOR RETAINER
*5	REAR CORNER ULTRASONIC SENSOR	*6	REAR CORNER ULTRASONIC SENSOR RETAINER
*7	REAR TURN SIGNAL LIGHT ASSEMBLY LH	*8	REAR TURN SIGNAL LIGHT ASSEMBLY RH
•	Non-reusable part	-	-

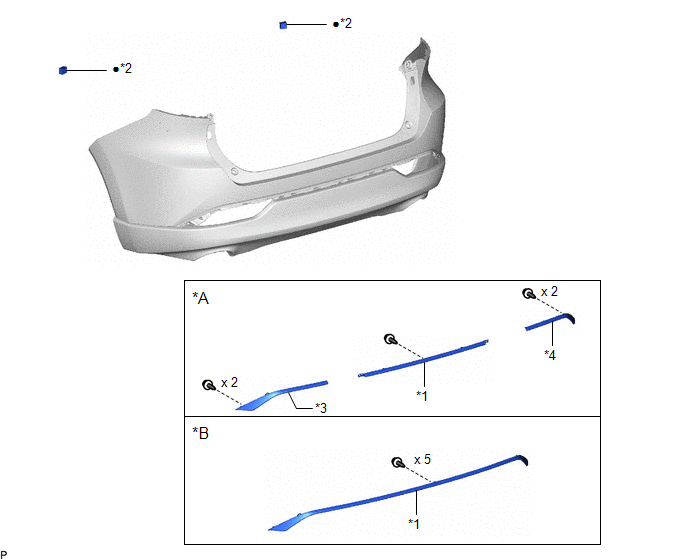

Fig 4: Rear Bumper Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For Type A	*B	For Type B
*1	REAR BUMPER MOULDING	*2	REAR BUMPER PAD
*3	REAR BUMPER SIDE MOULDING LH	*4	REAR BUMPER SIDE MOULDING RH
•	Non-reusable part	-	-

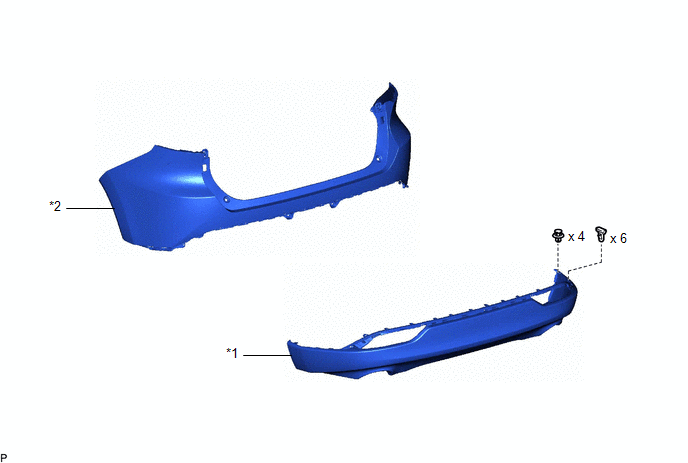

Fig 5: Rear Bumper Replacement Components (5 Of 6)

Callout	Description	Callout	Description
*1	REAR BUMPER LOWER COVER	*2	REAR BUMPER COVER

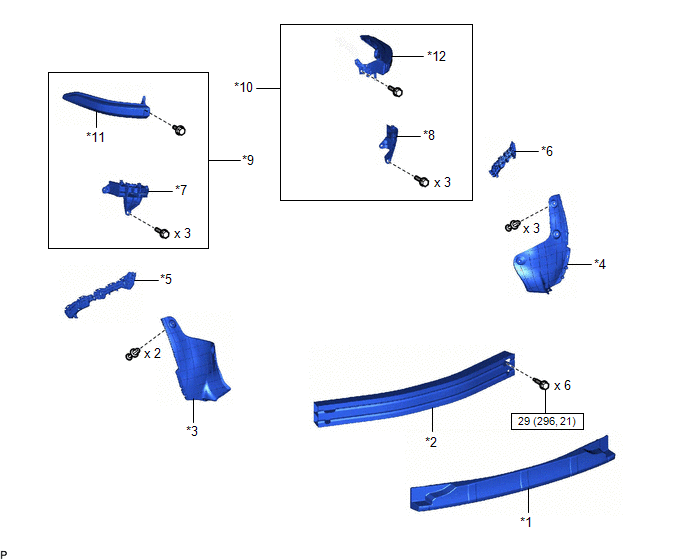

Fig 6: Rear Bumper Replacement Components With Torque Specifications (6 Of 6)

Callout	Description	Callout	Description
*1	REAR BUMPER ENERGY ABSORBER	*2	REAR BUMPER REINFORCEMENT
*3	REAR BUMPER SIDE SEAL LH	*4	REAR BUMPER SIDE SEAL RH
*5	REAR BUMPER SIDE SUPPORT LH	*6	REAR BUMPER SIDE SUPPORT RH
*7	REAR BUMPER UPPER RETAINER LH	*8	REAR BUMPER UPPER RETAINER RH
*9	REAR COMBINATION LIGHT ASSEMBLY LH	*10	REAR COMBINATION LIGHT ASSEMBLY RH
*11	REAR COMBINATION LIGHT SUB-ASSEMBLY LH	*12	REAR COMBINATION LIGHT SUB-ASSEMBLY RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
