Removal [10/2022 - ]: Procedure

REMOVE FRONT BUMPER ASSEMBLY

Apply protective tape around the front bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Use the same procedure for the RH side and LH side.

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side and LH side.

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

HINT:

Use the same procedure for the RH side and LH side.

Remove the 8 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 5 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

HINT:

Use the same procedure for the LH side and RH side.

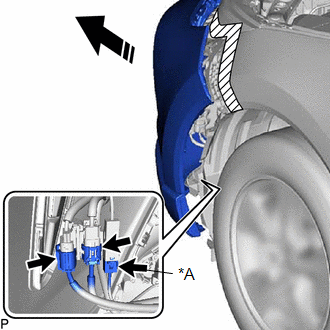

Pull back the side of the front bumper assembly and disconnect each connector.

*A	w/ Panoramic View Monitor System
	Remove in this Direction

NOTE:

Do not apply excessive force when pulling back the front bumper assembly.

Remove the 4 bolts.

Remove the 2 clips and front bumper assembly as shown in the illustration.

Remove in this Direction
