Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly.

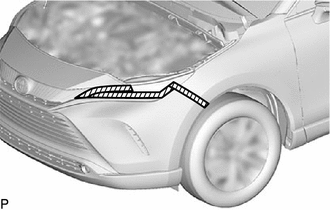

      GTY1013894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    2. Remove the clip.

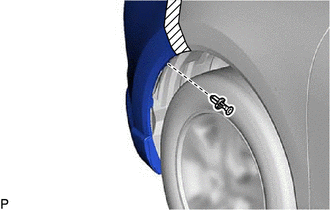

      GTY1013915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

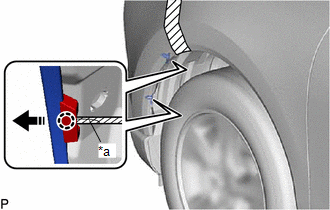

      GTY1017096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the 8 screws.

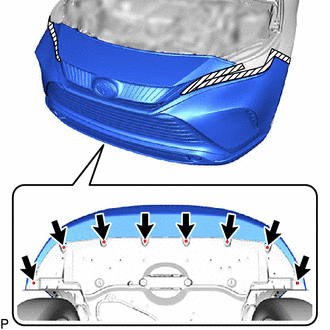

      GTY1013928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 5 claws as shown in the illustration.

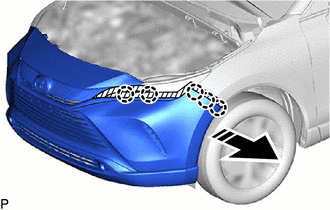

      GTY1014088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the LH side and RH side.

    6. Pull back the side of the front bumper assembly and disconnect the 2 connectors.

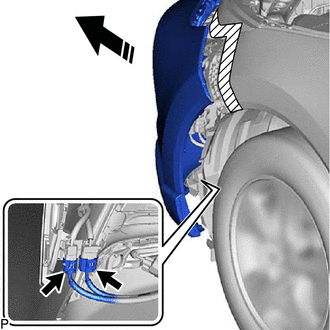

      GTY1014259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

    7. Remove the 4 bolts.

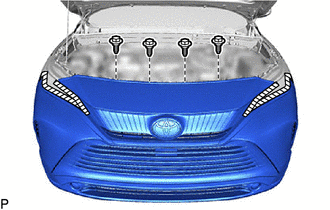

      GTY1013913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 clips and front bumper assembly as shown in the illustration.

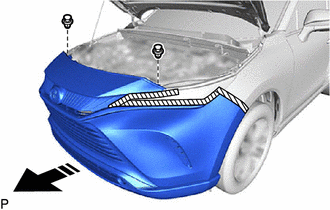

      GTY1014380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
