Removal [10/2022 - ]: Procedure

PRECAUTION
NOTE:
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
REMOVE REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 2
REMOVE BATTERY HOLE COVER
Refer to PROCEDURE - Step 6
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 4
REMOVE REAR BUMPER ASSEMBLY
Refer to REMOVAL [10/2022 - ]

REMOVE KICK DOOR CONTROL SENSOR WITH BRACKET

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the terminals of the kick door control sensor connector.

REMOVE KICK DOOR CONTROL SENSOR

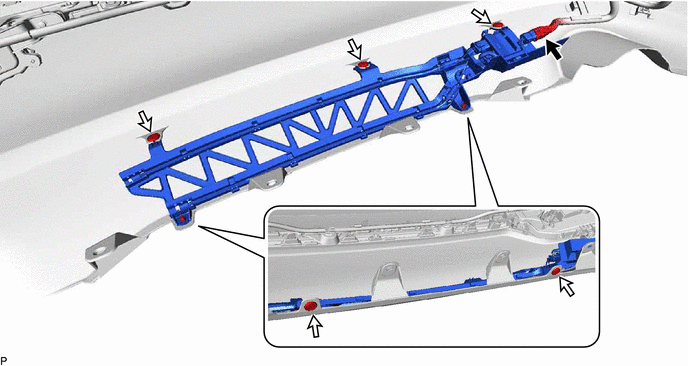

Disengage the 13 claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

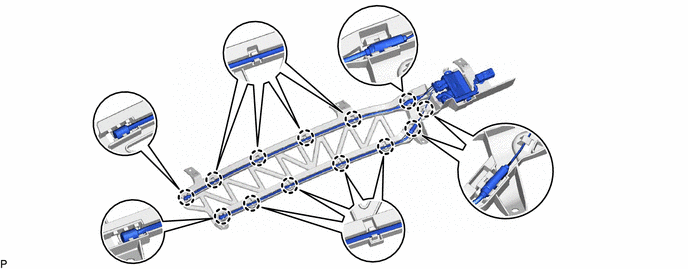

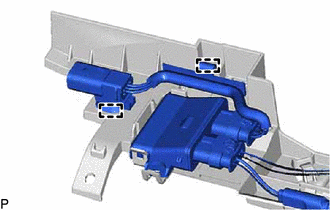

Disengage the 2 clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

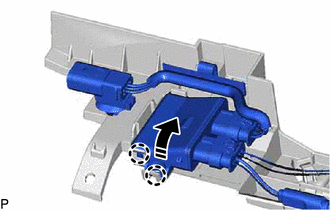

Disengage the 2 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

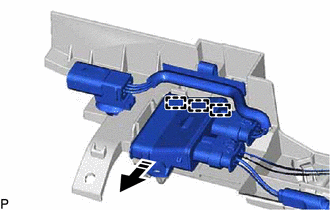

Disengage the 3 guides to remove the kick door control sensor from the kick door control bracket as shown in the illustration.

Remove in this Direction

NOTE:

Do not subject the kick door control sensor to a strong impact or drop it.
Do not reuse a kick door control sensor which has been subjected to a strong impact or dropped.
Be careful not to pull the wire harness.
Be careful not to twist the wire harness.
