Removal [10/2022 - ]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE SPARE WHEEL COVER STOPPER

    Refer to PROCEDURE - Step 7

  6. SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY LH

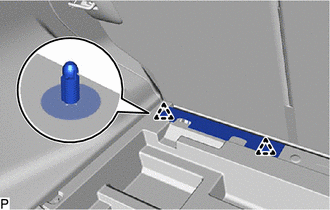

    1. Using a clip remover, disengage the 2 clips and turn back the rear seatback board carpet assembly LH.
      GTY1014316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH

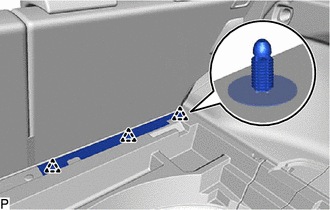

    1. Using a clip remover, disengage the 3 clips and turn back the rear seatback board carpet assembly RH.
      GTY1014320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 32

  9. REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

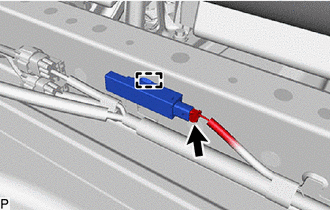

    1. Disengage the clamp.
      GTY1014669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 3 indoor electrical key antenna assembly.
      NOTE:

      Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
