Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 14

  9. REMOVE FRONT DOOR WEATHERSTRIP CLIP

    Refer to PROCEDURE - Step 17

  10. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 18

  11. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 20

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  13. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 23

  14. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  15. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 28

  16. REMOVE HOLE PLUG (for Driver Side)

    Refer to PROCEDURE - Step 29

  17. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 32

  18. REMOVE FRONT DOOR LOCK OPEN ROD

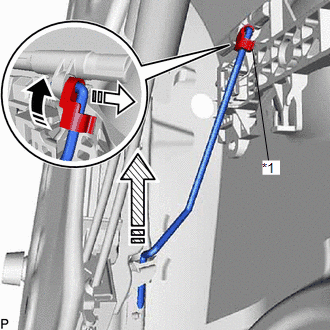

    1. Disengage the snap as shown in the illustration to disconnect the front door lock open rod.
      GTY1013040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap
      Remove in this Direction (1)
      Remove in this Direction (2)
      Remove in this Direction (3)
    2. Remove the front door lock open rod in the direction indicated by the arrow (3) shown in the illustration.
  19. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

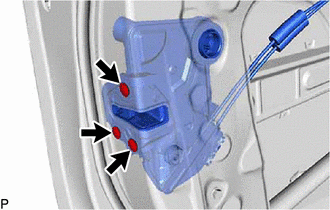

    1. Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws and front door lock with motor assembly.
      GTY1012079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. When reusing the front door lock with motor assembly:
      GTY1012077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
  20. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

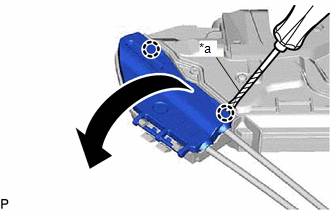

    1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      GTY1012600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

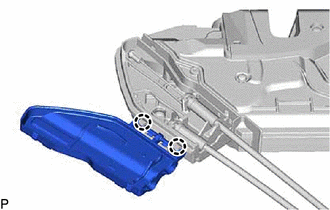

    2. Disengage the 2 claws to remove the front door lock cover sub-assembly.
      GTY1012088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE

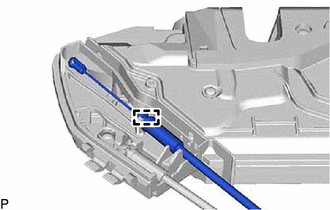

    1. Disengage the clamp to remove the front door lock open lever remote control cable.
      GTY1012086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE

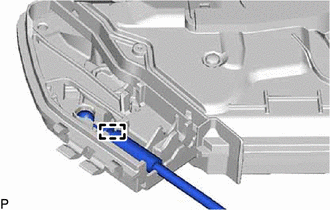

    1. Disengage the clamp to remove the front door inside lock/unlock knob locking cable.
      GTY1012663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
