Removal [07/2020 - ]: Procedure

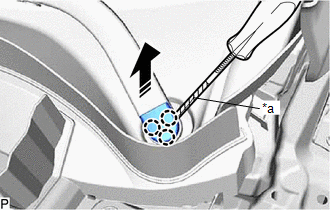

  1. REMOVE FRONT WIPER ARM HEAD CAP
    1. GTY989795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration to remove the front wiper arm head cap.

      HINT:

      Use the same procedure for the RH side and LH side.

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

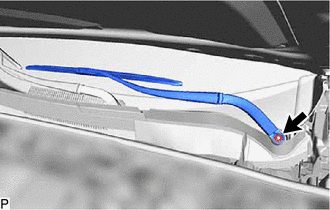

    1. Remove the nut and front wiper arm and blade assembly LH.
      GTY989149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

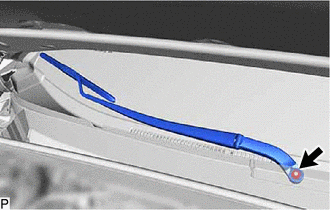

    1. Remove the nut and front wiper arm and blade assembly RH.
      GTY989148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

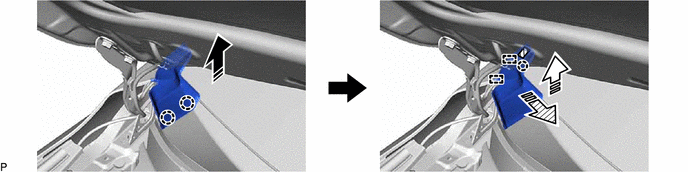

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
    1. Disengage the 2 claws as shown in the illustration.
      GTY990123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) Double-sided Tape
    2. Disengage the claw and 2 guides and separate the double-sided tape as shown in the illustration to remove the front fender to cowl side seal LH.
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    NOTE:

    To prevent damage to the windshield glass, remove any foreign matter (sand, dust, etc.) from around the contacting surfaces of the cowl top ventilator louver sub-assembly and windshield glass.

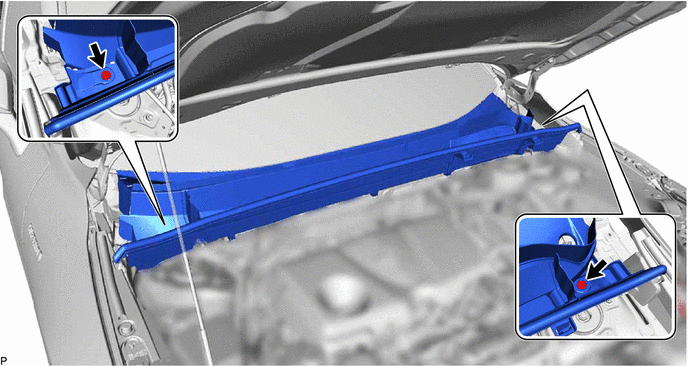

    1. Remove the 2 clips.
      GTY989164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the hood sub-assembly.

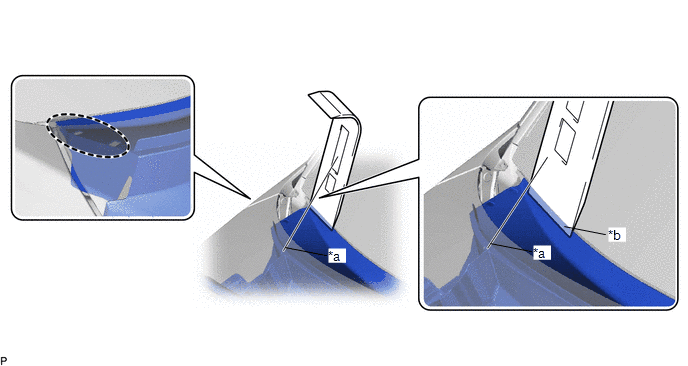

    3. Insert a moulding remover at the starting position, as far as it can be inserted, to lift the cowl top ventilator louver sub-assembly and then hold it as shown in the illustration.
      GTY988813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Starting Position:
      Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned      		 *b Inserted as Far as Possible
      Place Hand Here - -
    4. Apply protective tape to a moulding remover as shown in the illustration.
      GTY709981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Edge of Protective Tape
      Protective Tape

      Standard Dimension

      Area Dimension
      A 4.0 mm (0.157 in.)

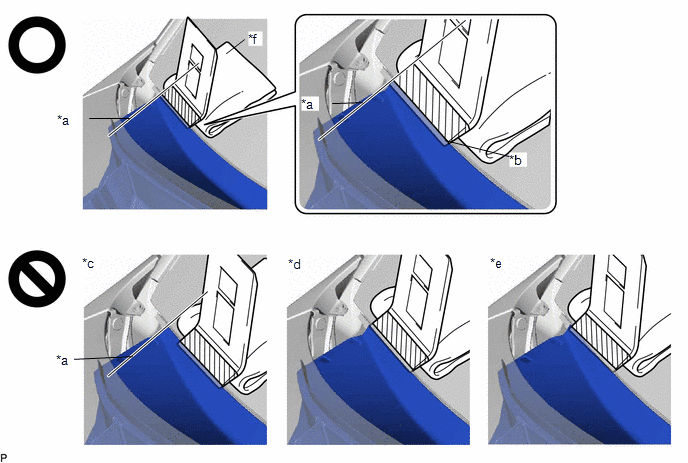

    5. Insert the moulding remover at the starting position until the edge of the protective tape is aligned with the cowl top ventilator louver sub-assembly as shown in the illustration.
      GTY989329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Starting Position:
      Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned      		 *b Inserted to Edge of Protective Tape
      *c Not Inserted at Starting Position *d Not Inserted to Edge of Protective Tape
      *e Not Inserted Straight *f Piece of Cloth or Equivalent
      Protective Tape - -
      NOTE:
      • To prevent damage to the windshield glass, set a piece of cloth between the moulding remover and windshield glass.
      • Make sure to insert the moulding remover until the edge of protective tape is aligned with the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

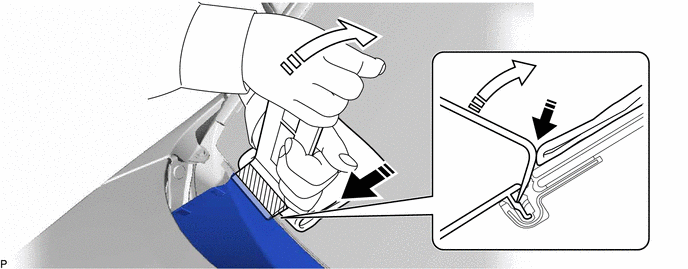

    6. While pushing the moulding remover in the direction indicated by the arrow (A), push the moulding remover in the direction indicated by the arrow (B) to disengage the cowl top ventilator louver sub-assembly.
      GTY989912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push in this Direction (A) Push in this Direction (B)
      NOTE:
      • Make sure to repeat this procedure to disengage the entire cowl top ventilator louver sub-assembly.
      • Make sure to perform this procedure while pushing the moulding remover in the direction indicated by the arrow (A), otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.
      • Make sure not to pry the cowl top ventilator louver sub-assembly more than necessary to disengage it, otherwise it may be deformed or damaged.
        GTY726472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Pried Until Disengaged *b Pried Excessively

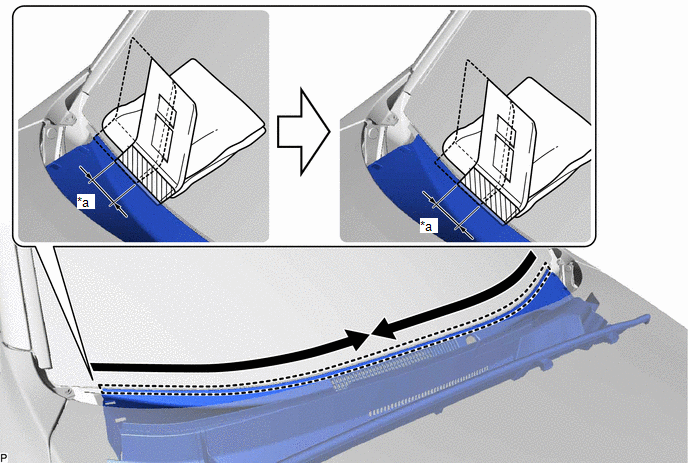

    7. Using the moulding remover, repeatedly pry up the cowl top ventilator louver sub-assembly while gradually moving the moulding remover half of its width laterally toward the center of the vehicle and then repeat the procedure from the other side of the vehicle as shown in the illustration to disengage the cowl top ventilator louver sub-assembly from the windshield glass.
      GTY989707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Half Width of Moulding Remover - -
      Order of Removal - -
      NOTE:
      • Make sure to move the moulding remover only half of its width laterally after prying up the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be damaged or deformed.
      • Make sure not to lift up or pull the cowl top ventilator louver sub-assembly by hand before it is completely disengaged, otherwise it may be deformed or damaged.
    8. Open the hood sub-assembly.

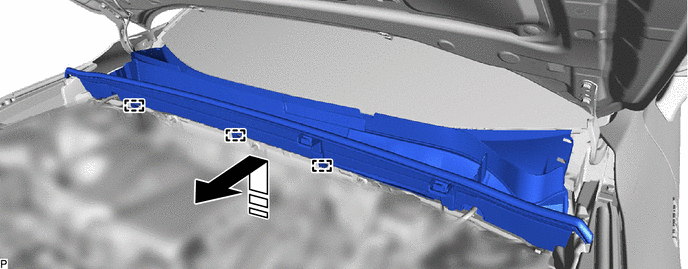

    9. Disengage the 3 guides to remove the cowl top ventilator louver sub-assembly as shown in the illustration.
      GTY989235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

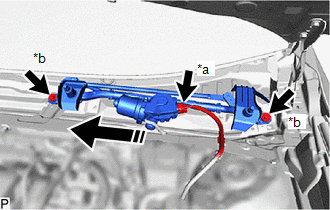

  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Disconnect the connector.
      GTY989732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector
      *b Bolt
      Remove in this Direction
    2. Remove the 2 bolts and windshield wiper motor and link assembly as shown in the illustration.
      NOTE:

      Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.

  8. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

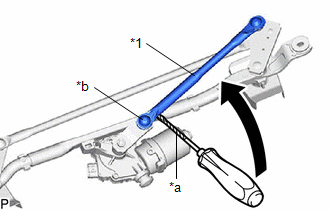

    1. Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 wiper link rod from the pivot of the windshield wiper motor assembly as shown in the illustration.
      GTY989055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Wiper Link Rod
      *a Protective Tape
      *b Pivot of Windshield Wiper Motor Assembly

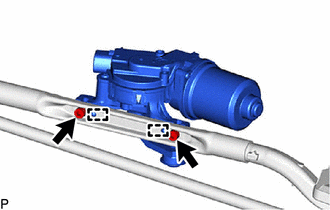

    2. Using a T30 "TORX" socket wrench, remove the 2 bolts.
      GTY989183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and remove the windshield wiper motor assembly from the windshield wiper link assembly.
