Components [07/2020 - ]

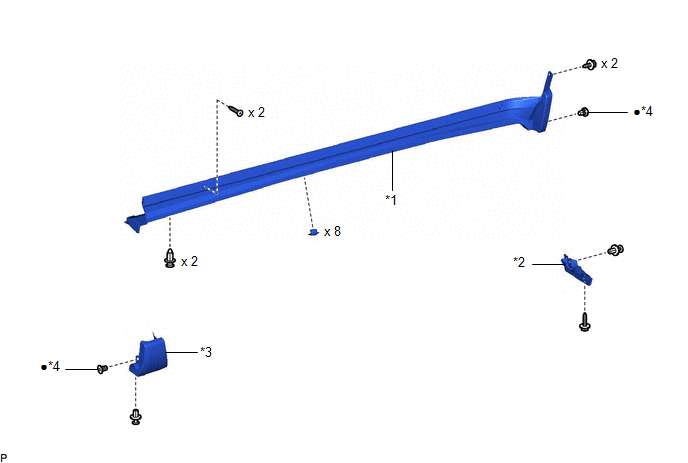

Fig 1: Rocker Panel Moulding Replacement Components
GTY1009268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BODY ROCKER PANEL MOULDING ASSEMBLY *2 REAR WHEEL HOUSE FRONT PLATE
*3 SIDE MUDGUARD SUB-ASSEMBLY *4 GROMMET
• Non-reusable part - -
