Installation [10/2022 - ]: Procedure

INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

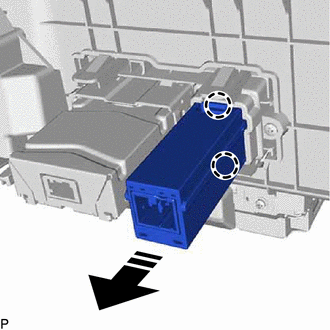

Engage the 2 claws to install the No. 1 stereo jack adapter assembly as shown in the illustration.

GTY1120141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL WIRELESS CHARGER ASSEMBLY
Refer to PROCEDURE - Step 4
INSTALL UPPER CONSOLE BOX INSULATOR
Refer to PROCEDURE - Step 10
INSTALL AIR CONDITIONING CONTROL ASSEMBLY
Refer to INSTALLATION [07/2020 - ]
