Installation [10/2022 - ]: Procedure

  1. INSTALL TELEPHONE MICROPHONE ASSEMBLY
    1. Connect the connector.

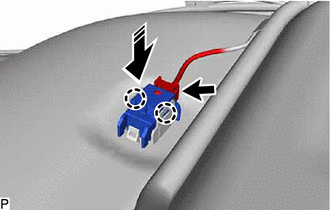

      GTY1121180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the telephone microphone assembly as shown in the illustration.
    3. The orientation for the LH side is the opposite of the RH side.
  2. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]
