Installation [07/2020 - ]: Procedure

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

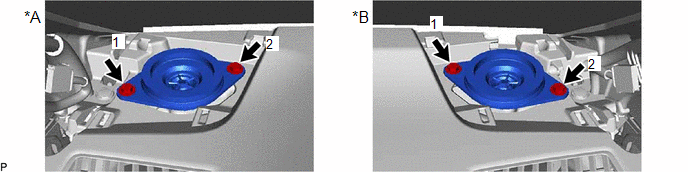

Install the front No. 2 speaker assembly with the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side

for RH Side

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

HINT:

Install the screws in the order shown in the illustration.

INSTALL NO. 1 SPEAKER HOLE COVER
Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]
INSTALL FRONT PILLAR GARNISH
Refer to PROCEDURE - Step 47 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 47 [10/2022 - ]
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
Refer to PROCEDURE - Step 1
