Removal [07/2020 - 10/2022]: Procedure

Refer to REMOVAL [07/2020 - 10/2022]

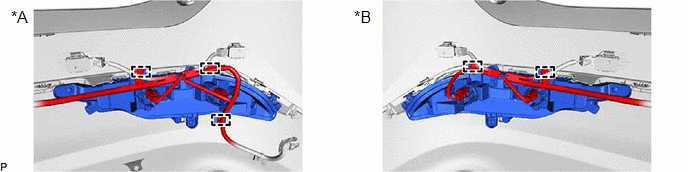

1. Disengage each clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for LH Side

   *B

   for RH Side

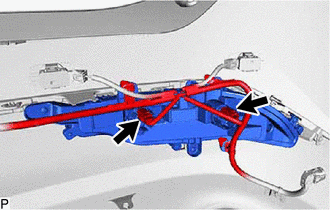

2. Disconnect the 2 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

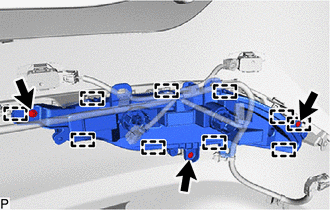

3. Remove the 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disengage the 10 guides to remove the rear turn signal light assembly.
