Parts Location [07/2020 - 10/2022]: Illustration

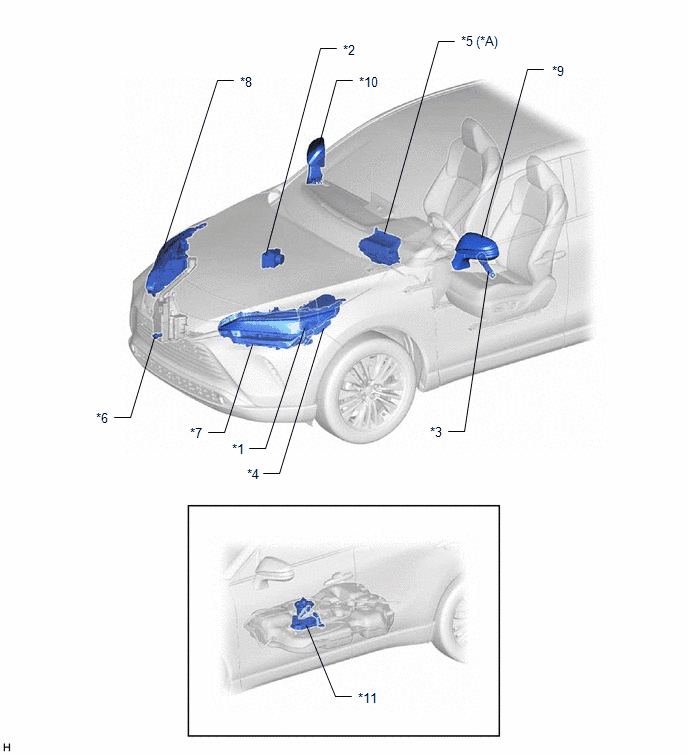

Fig 1: Meter / Gauge System (Except 12.3 Inch Display) Replacement Components (1 Of 4) [07/2020 - 10/2022]
| *A | w/ Headup Display System | - | - |
| *1 | ECM | *2 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
| *3 | FRONT SEAT INNER BELT ASSEMBLY LH | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE |
| *5 | METER MIRROR SUB-ASSEMBLY | *6 | LEVEL WARNING SWITCH ASSEMBLY |
| *7 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH (w/o Projector Headlight) - HEADLIGHT FRONT TURN SIGNAL LED LH (w/o Projector Headlight) |
*8 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH (w/o Projector Headlight) - HEADLIGHT FRONT TURN SIGNAL LIGHT RH (w/o Projector Headlight) |
| *9 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR RETRACTOR LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*10 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RETRACTOR RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *11 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
- | - |

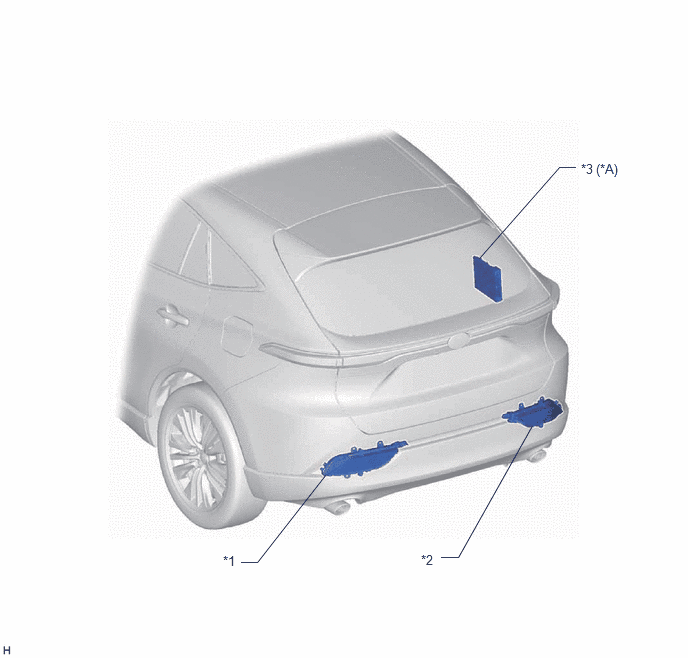

Fig 1: Meter / Gauge System (Except 12.3 Inch Display) Replacement Components (2 Of 4) [07/2020 - 10/2022]
| *A | w/ Navigation System | - | - |
| *1 | REAR TURN SIGNAL LIGHT ASSEMBLY LH - REAR TURN SIGNAL LIGHT LED LH |
*2 | REAR TURN SIGNAL LIGHT ASSEMBLY RH - REAR TURN SIGNAL LIGHT LED RH |
| *3 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

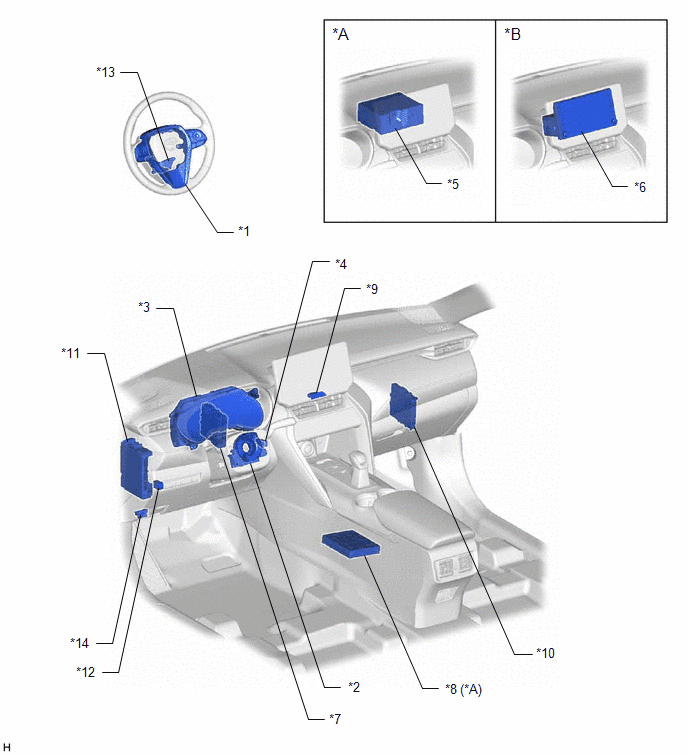

Fig 1: Meter / Gauge System (Except 12.3 Inch Display) Replacement Components (3 Of 4) [07/2020 - 10/2022]
| *A | w/ Navigation System | *B | w/o Navigation System |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*4 | TRIP SWITCH - ODO/TRIP SWITCH |
| *5 | RADIO RECEIVER ASSEMBLY | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | NAVIGATION ECU |
| *9 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | POWER DISTRIBUTION BOX ASSEMBLY - METER-IGR FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE |
*12 | LIGHT CONTROL RHEOSTAT - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
| *13 | STEERING VIBRATION ECU | *14 | DLC3 |
