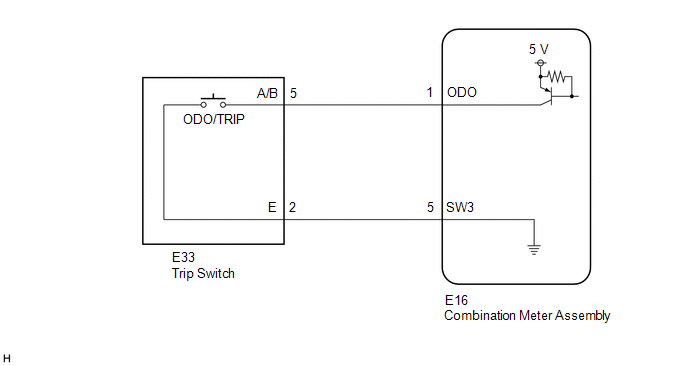

Odo/Trip Switch Malfunction [07/2020 - ]: Wiring Diagram

GTY984738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
