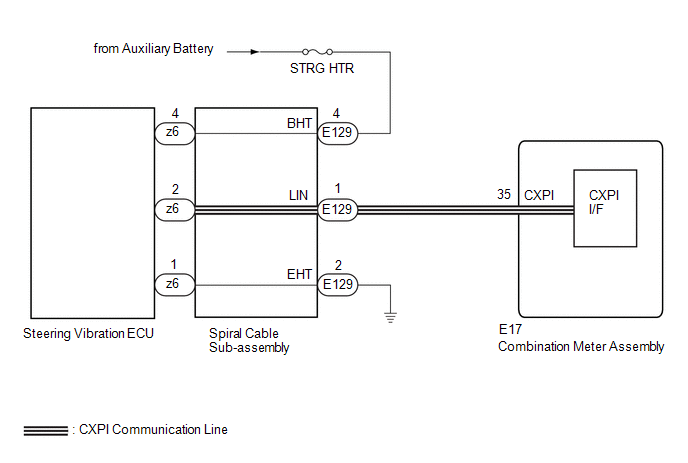

DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message [07/2020 - ]: Wiring Diagram

GTY985936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
