Components [07/2020 - ]

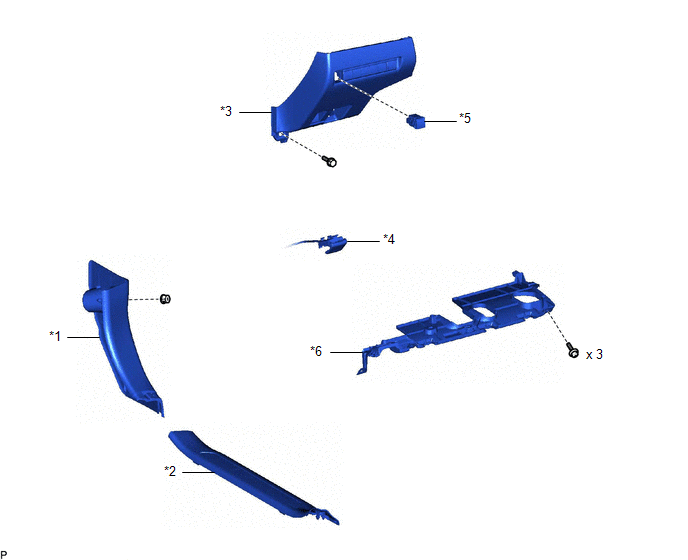

Fig 1: Light Control Rheostat Replacement Components
GTY988570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COWL SIDE TRIM BOARD LH *2 FRONT DOOR SCUFF PLATE LH
*3 FUSE BOX OPENING COVER *4 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*5 LIGHT CONTROL RHEOSTAT *6 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
