Reassembly [07/2020 - ]: Procedure

  1. INSTALL NO. 1 COMBINATION METER MIRROR PLATE

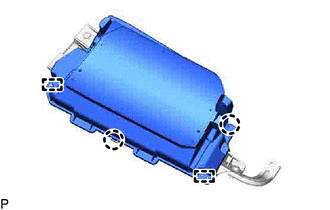

    1. Engage the 2 guides and 2 claws.
      GTY987515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

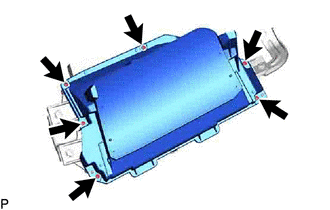

    2. Install the No. 1 combination meter mirror plate with the 6 screws.
      GTY987513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
