Installation [07/2020 - ]: Procedure

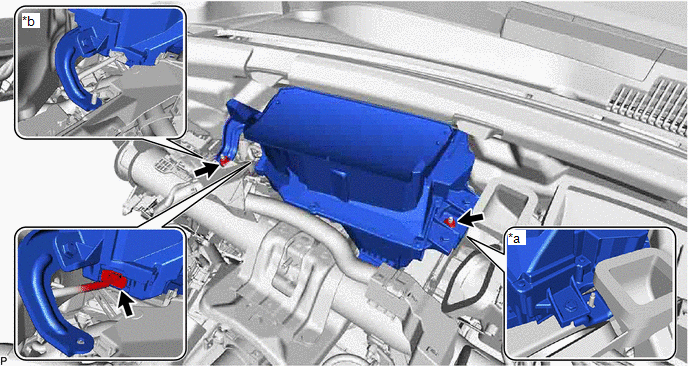

1. Pass the right side installation hole through the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Right Side

   *b

   Left Side

2. Connect the connector.
3. Pass the left side installation hole through the stud bolt to temporarily set the meter mirror sub-assembly.
4. Install the meter mirror sub-assembly with the 2 nuts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Refer to INSTALLATION [07/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
