Components [07/2020 - ]

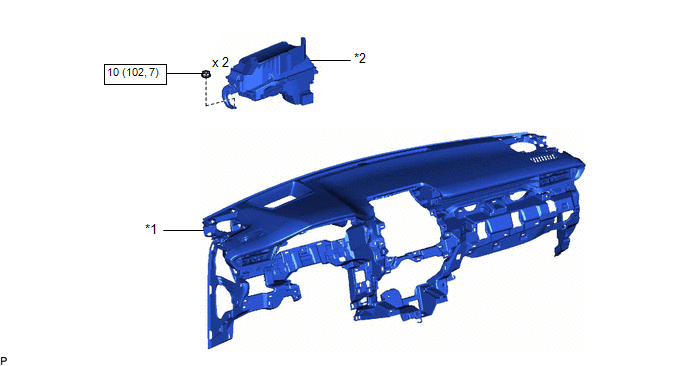

Fig 1: Headup Display Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	*2	METER MIRROR SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

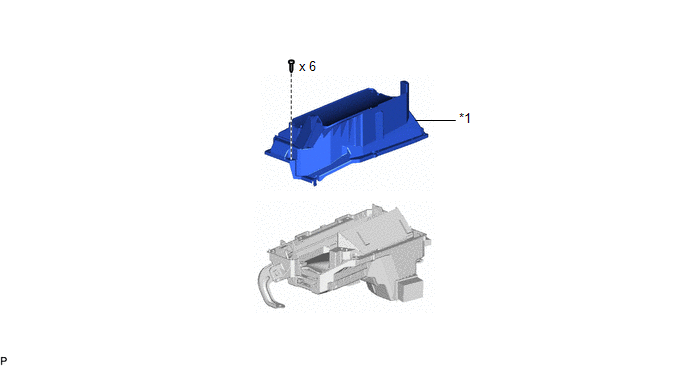

Fig 2: Headup Display Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 1 COMBINATION METER MIRROR PLATE	-	-
