Reassembly [10/2022 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS
    1. Except 12.3 Inch Display:
      1. Engage the 8 claws to install the combination meter glass.
        GTY987509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

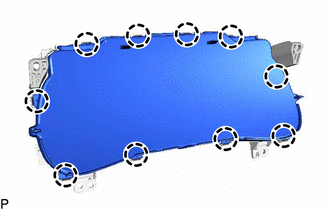

    2. For 12.3 Inch Display:
      1. Engage the 10 claws to install the combination meter glass.
        GTY1121517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
