Disassembly [07/2020 - 10/2022]: Procedure

  1. REMOVE COMBINATION METER GLASS

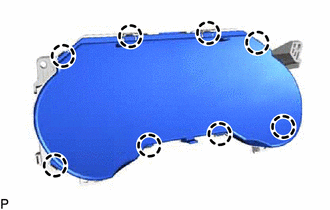

    1. Disengage the 8 claws to remove the combination meter glass.
      GTY987509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
