Components [10/2022 - ]

Fig 1: Combination Meter Replacement Components [10/2022 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY HOLE COVER	*2	REAR NO. 2 FLOOR BOARD

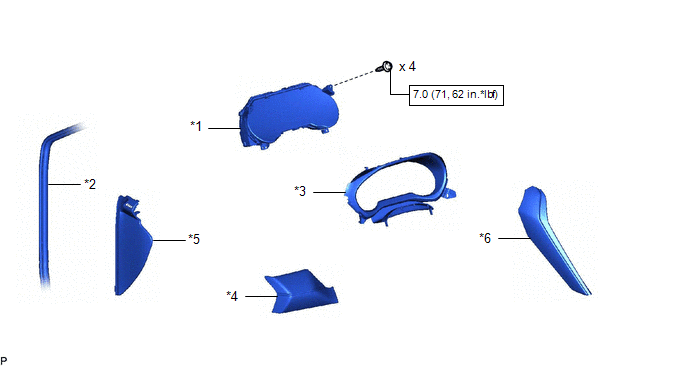

Fig 2: Combination Meter Replacement Components With Torque Specifications [10/2022 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COMBINATION METER ASSEMBLY	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*4	NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
*5	NO. 2 INSTRUMENT SIDE PANEL	*6	UPPER CONSOLE COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

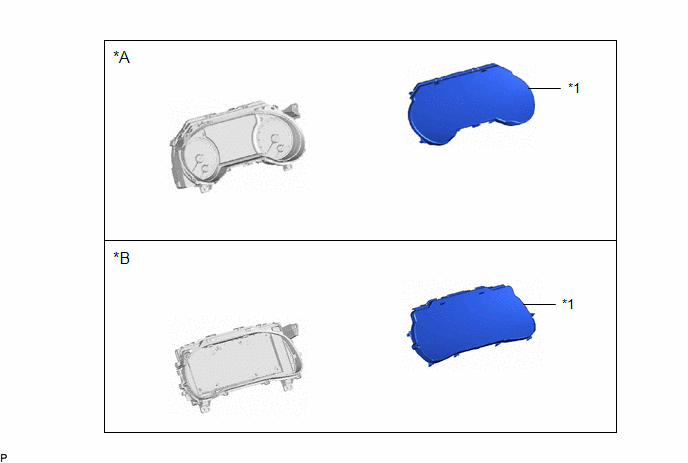

Fig 3: Combination Meter Replacement Components [10/2022 - ] (3 Of 3)

Callout	Description	Callout	Description
*A	Except 12.3 Inch Display	*B	For 12.3 Inch Display
*1	COMBINATION METER GLASS	-	-
