Disassembly [07/2020 - ]: Procedure

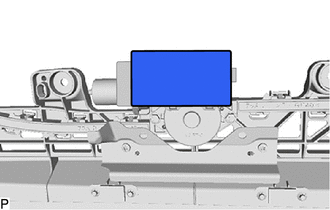

  1. REMOVE NO. 2 SLIDING ROOF HOUSING PAD
    1. Remove the No. 2 sliding roof housing pad.
      GTY1015737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY
    1. Remove the 2 bolts to sliding roof drive gear assembly.
      GTY1012443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SLIDING ROOF HOUSING PAD

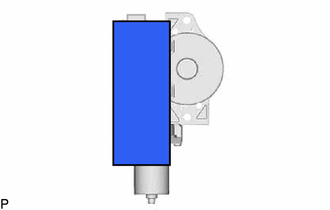

    1. Remove the sliding roof housing pad.
      GTY1015736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SLIDING ROOF SIDE GARNISH LH

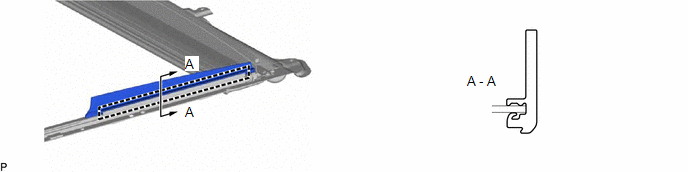

    1. Move the sunshade trim sub-assembly to the fully open position.
    2. Disengage the guide to remove the rear sliding roof side garnish LH.
      GTY1013650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SLIDING ROOF SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE CENTER SLIDING ROOF HOUSING FRAME

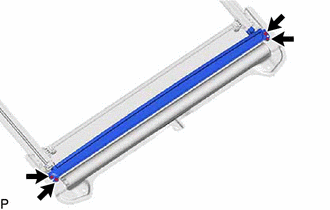

    1. Using a T25 "TORX" socket wrench, remove the 4 "TORX" screws to center sliding roof housing frame.
      GTY1012454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

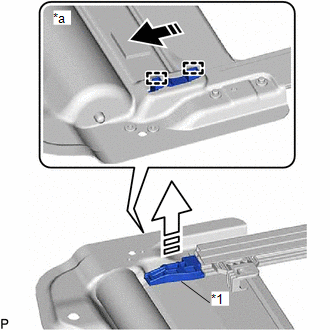

    1. Disengage the 2 guides in the direction indicated by the arrow (1) shown in the illustration.
      GTY1012577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Sliding Roof Sunshade Guide LH
      *a Back Side
      Remove in this Direction (1)
      Remove in this Direction (2)

      HINT:

      Use the same procedure for the other side.

    2. Remove the sliding roof sunshade guide LH in the direction indicated by the arrow (2) shown in the illustration.

      HINT:

      Use the same procedure for the other side.

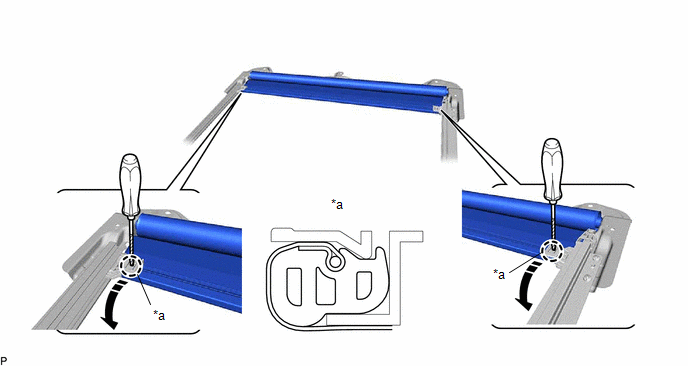

    3. Using a screwdriver, disengage the 2 claws and remove part (A) as shown in the illustration.
      GTY1013186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Part (A) - -
      Remove in this Direction Protective Tape

      HINT:

      Tape the screwdriver tip before use.

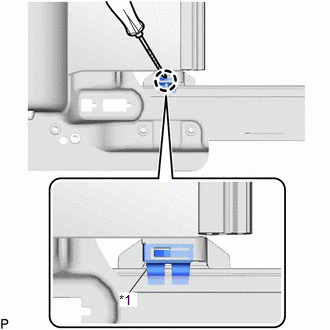

    4. Using a screwdriver, disengage the claw of the sliding roof sunshade plate LH.
      GTY1011978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Sliding Roof Sunshade Plate LH
      Protective Tape

      HINT:

      • Tape the screwdriver tip before use.
      • Use the same procedure for the other side.

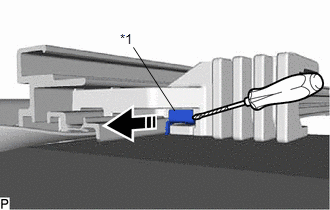

    5. Using a screwdriver, remove the sunshade trim sub-assembly with sliding roof sunshade plate LH as shown in the illustration.
      GTY1013022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Sliding Roof Sunshade Plate LH
      Remove in this Direction
      Protective Tape

      HINT:

      • Tape the screwdriver tip before use.
      • Use the same procedure for the other side.

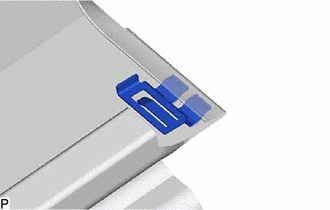

    6. Remove the sliding roof sunshade plate LH from the sunshade trim sub-assembly.
      GTY1014641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

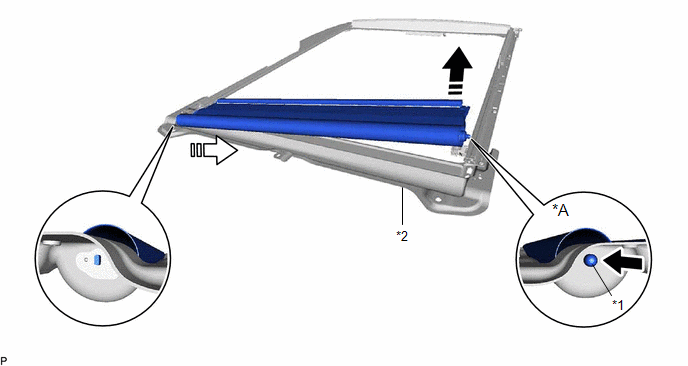

    7. Push the retractor cap, lift up the sunshade trim sub-assembly in the direction of the arrow (1) and then remove it in the direction of the arrow (2) as shown in the illustration.
      NOTE:

      To prevent the sunshade trim sub-assembly from being damaged, fully push in the RH side retractor cap before lifting the sunshade trim sub-assembly to separate it from the slide roof rail sub-assembly.

      GTY1012551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A RH Side - -
      *1 Retractor Cap *2 Slide Roof Rail Sub-assembly
      Push Remove in this Direction (1)
      Remove in this Direction (2) - -
