Components [07/2020 - ]

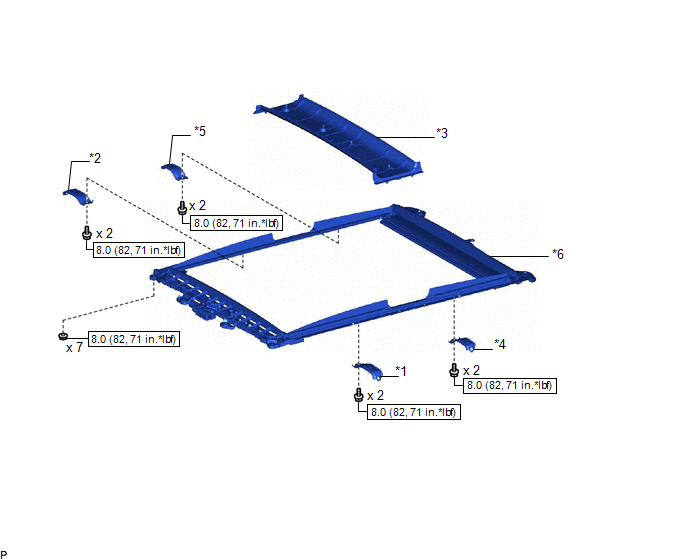

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH | *2 | FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH |
| *3 | REAR ROOF HEADLINING GARNISH | *4 | REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH |
| *5 | REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH | *6 | ROOF SUNSHADE HOUSING ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

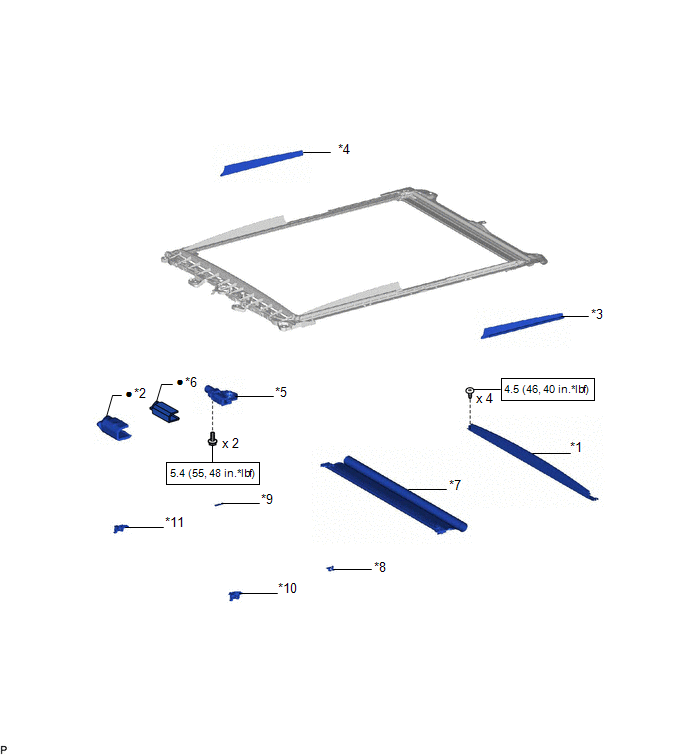

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER SLIDING ROOF HOUSING FRAME | *2 | NO. 2 SLIDING ROOF HOUSING PAD |
| *3 | REAR SLIDING ROOF SIDE GARNISH LH | *4 | REAR SLIDING ROOF SIDE GARNISH RH |
| *5 | SLIDING ROOF DRIVE GEAR ASSEMBLY | *6 | SLIDING ROOF HOUSING PAD |
| *7 | SUNSHADE TRIM SUB-ASSEMBLY | *8 | SLIDING ROOF SUNSHADE PLATE LH |
| *9 | SLIDING ROOF SUNSHADE PLATE RH | *10 | SLIDING ROOF SUNSHADE GUIDE LH |
| *11 | SLIDING ROOF SUNSHADE GUIDE RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
