Inspection [07/2020 - ]: Procedure
- INSPECT MAP LIGHT ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

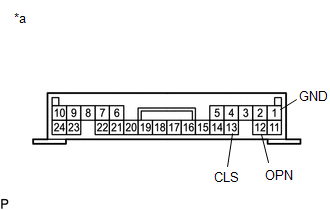

*a Component without harness connected
(Roof Sunshade Switch (Map Light Assembly))Standard Resistance
Tester Connection Condition Specified Condition 12 (OPN) - 1 (GND) OPEN switch is pressed Below 100 Ω OPEN switch is not pressed 1 kΩ or higher 13 (CLS) - 1 (GND) CLOSE switch is pressed Below 100 Ω CLOSE switch is not pressed 1 kΩ or higher If the result is not as specified, replace the roof sunshade switch (map light assembly).
- Measure the resistance according to the value(s) in the table below.
