Reassembly [07/2020 - 10/2022]: Procedure
- INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
For Normal Roof:
Refer to PROCEDURE - Step 2
For Glass Roof:
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 ROOF WIRE (for Normal Roof)

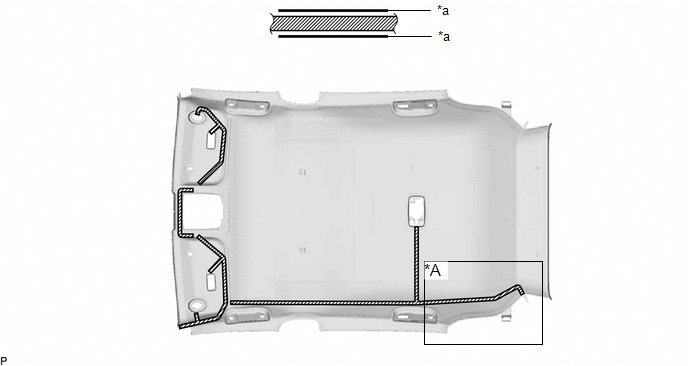

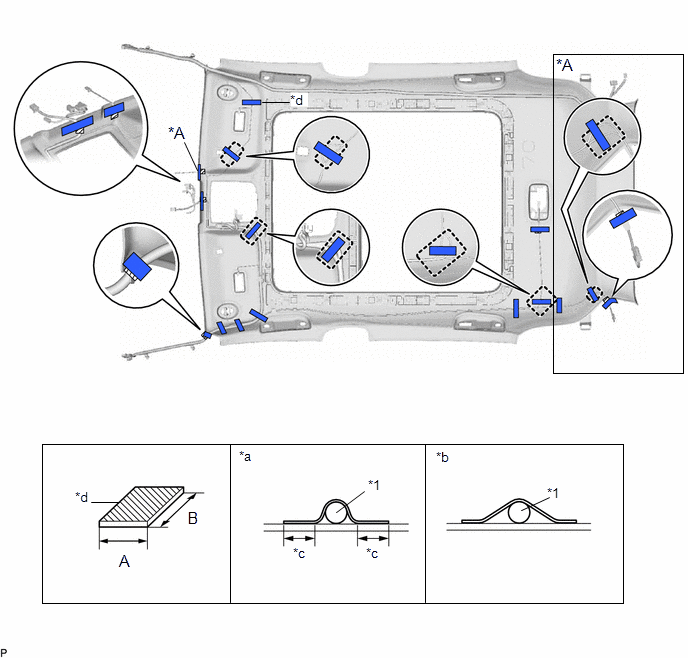

- Apply butyl tape as shown in the illustration.
*A w/ Digital Inner Mirror - - *a Marking - - Butyl tape - - NOTE:Securely attach the butyl tape.

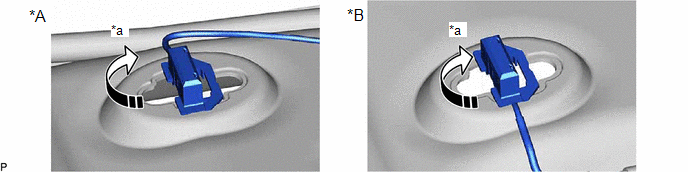

- Turn the 2 visor connectors clockwise approximately 90° to install them to the roof headlining assembly.

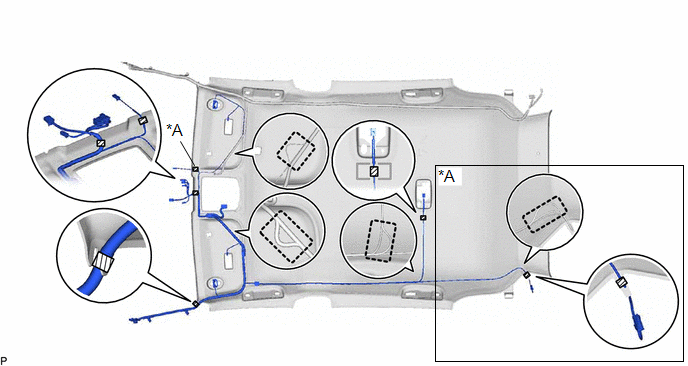

*A For LH side *B For RH side *a 90° - - Rotation Direction - - - Align the marking tape on the No. 1 roof wire with the roof headlining assembly as shown in the illustration.
*A w/ Digital Inner Mirror - - Marking Tape - - Adjustment Area - - - Attach the No. 1 roof wire with the butyl tape.NOTE:
- Securely attach the No. 1 roof wire.
- If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.
- Make sure to attach the No. 1 roof wire without leaving any of it loose.
HINT:
Secure the extra length of the No. 1 roof wire in the adjustment area.
- Install the No. 1 roof wire to the roof headlining assembly with adhesive tape.

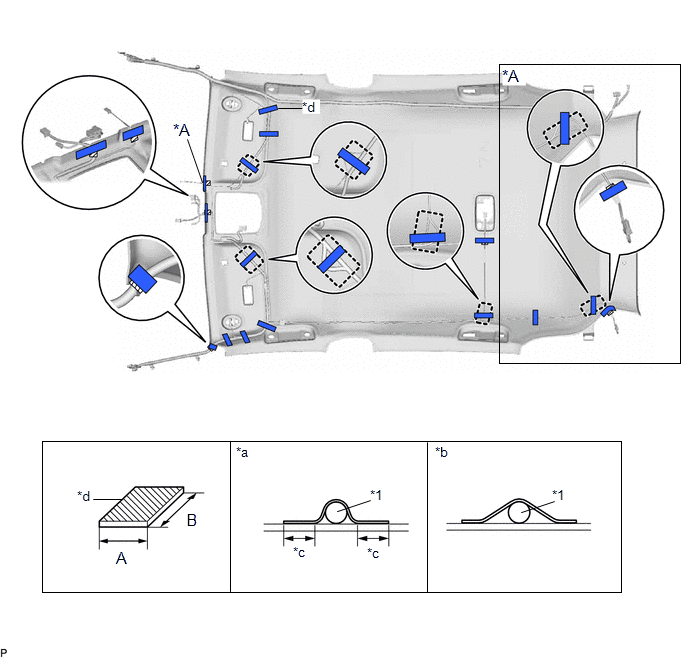

*A w/ Digital Inner Mirror - - *1 No. 1 Roof Wire - - *a Correct *b Incorrect *c 10 mm (0.394 in.) or more *d Adhesive Tape Adjustment Area - - ADHESIVE TAPE SIZEArea Dimension Area Dimension A 20 mm (0.787 in.) B 80 mm (3.15 in.) or more NOTE:- Apply the tape securely in place.
- Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
- Apply butyl tape as shown in the illustration.
- INSTALL NO. 1 ROOF WIRE (for Glass Roof)

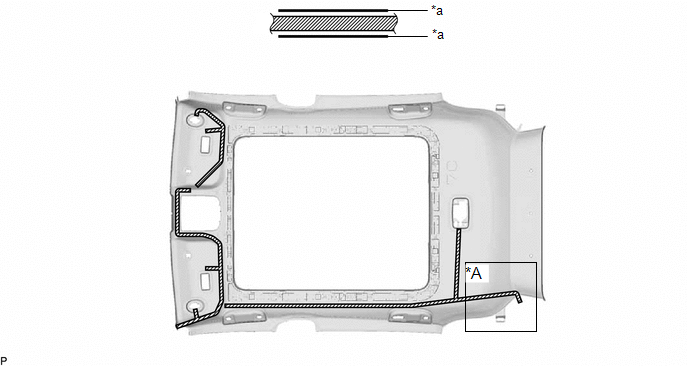

- Apply butyl tape as shown in the illustration.
*A w/ Digital Inner Mirror - - *a Marking - - Butyl tape - - NOTE:Securely attach the butyl tape.
- Turn the 2 visor connectors clockwise approximately 90° to install them to the roof headlining assembly.

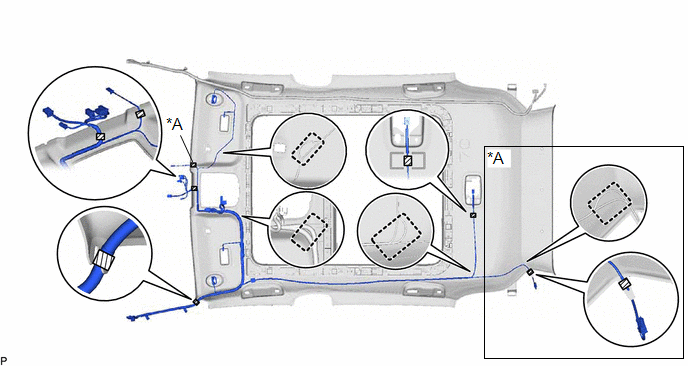

*A For LH side *B For RH side *a 90° - - Rotation Direction - - - Align the marking tape on the No. 1 roof wire with the roof headlining assembly as shown in the illustration.
*A w/ Digital Inner Mirror - - Marking Tape - - Adjustment Area - - - Attach the No. 1 roof wire with the butyl tape.NOTE:
- Securely attach the No. 1 roof wire.
- If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.
- Make sure to attach the No. 1 roof wire without leaving any of it loose.
HINT:
Secure the extra length of the No. 1 roof wire in the adjustment area.
- Install the No. 1 roof wire to the roof headlining assembly with adhesive tape.
*A w/ Digital Inner Mirror - - *1 No. 1 Roof Wire - - *a Correct *b Incorrect *c 10 mm (0.394 in.) or more *d Adhesive Tape Adjustment Area - - ADHESIVE TAPE SIZEArea Dimension Area Dimension A 20 mm (0.787 in.) B 80 mm (3.15 in.) or more NOTE:- Apply the tape securely in place.
- Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
- Apply butyl tape as shown in the illustration.
- INSTALL ROOF HEADLINING PAD (for Cold Area Specification Vehicles with Normal Roof)
- INSTALL ROOF HEADLINING END PAD (for Cold Area Specification Vehicles with Normal Roof)
- INSTALL FRONT SIDE ROOF HEADLINING PAD (for Cold Area Specification Vehicles)
- Remove the release paper from 2 new front side roof headlining pads.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

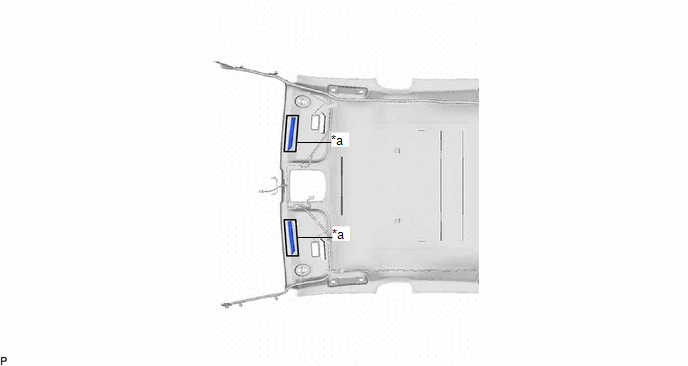

- Align the 2 front side roof headlining pads with the markings on the roof headlining assembly and install them as shown in the illustration.
*a Marking - -
- Remove the release paper from 2 new front side roof headlining pads.
- INSTALL NO. 1 ROOF SILENCER PAD (for Normal Roof)

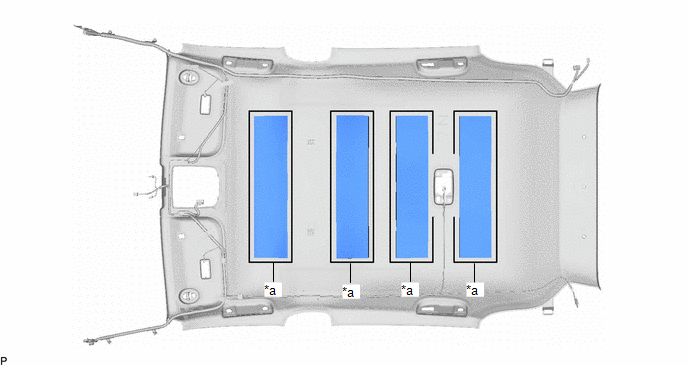

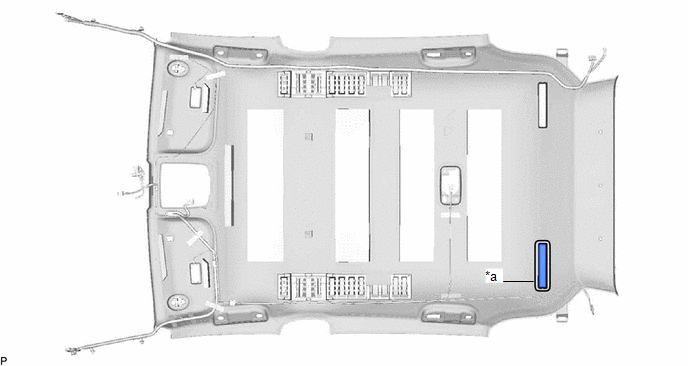

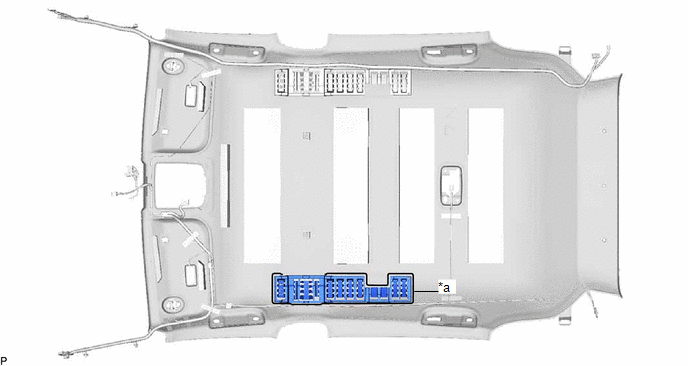

- Align 4 No. 1 roof silencer pads with the markings on the roof headlining assembly and install them using hot-melt glue as shown in the illustration.
*a Marking - - HINT:
Make sure to install the No. 1 roof silencer pad firmly to prevent it from being peeled off when installing the roof headlining assembly.
- Align 4 No. 1 roof silencer pads with the markings on the roof headlining assembly and install them using hot-melt glue as shown in the illustration.
- INSTALL NO. 2 ROOF HEADLINING SUPPORT (for Normal Roof)
- Align a No. 2 roof headlining support with the marking on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.
*a Marking - - HINT:
Make sure to install the No. 2 roof headlining support firmly to prevent it from being peeled off when installing the roof headlining assembly.
- Align a No. 2 roof headlining support with the marking on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.
- INSTALL NO. 1 ROOF HEADLINING SUPPORT (for Normal Roof)
HINT:
Use the same procedure as for the No. 2 roof headlining support.
- INSTALL ROOF HEADLINING PAD LH

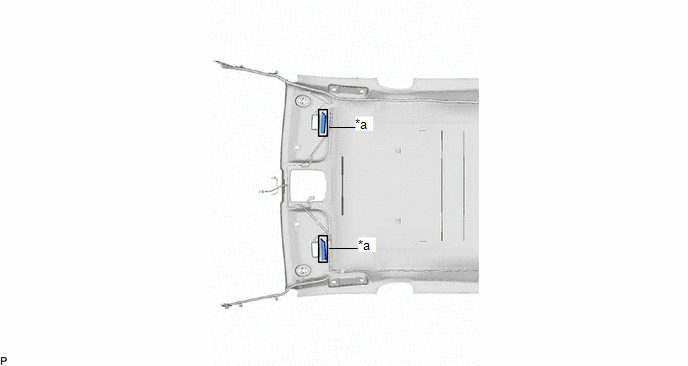

- Align a roof headlining pad LH with the marking on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.
*a Marking - - HINT:
Make sure to install the roof headlining pad LH firmly to prevent it from being peeled off when installing the roof headlining assembly.
- Align a roof headlining pad LH with the marking on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.
- INSTALL ROOF HEADLINING PAD RH
HINT:
Use the same procedure as for the LH side.
- INSTALL CENTER ROOF HEADLINING PAD
- Remove the release paper from new center roof headlining pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

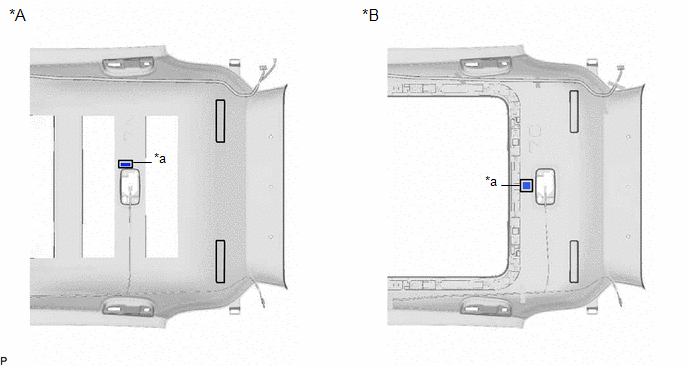

- Align the center roof headlining pad with the markings on the roof headlining assembly and install it as shown in the illustration.
*A For Normal Roof *B For Glass Roof *a Marking - -
- Remove the release paper from new center roof headlining pad.
