Disassembly [07/2020 - 10/2022]: Procedure

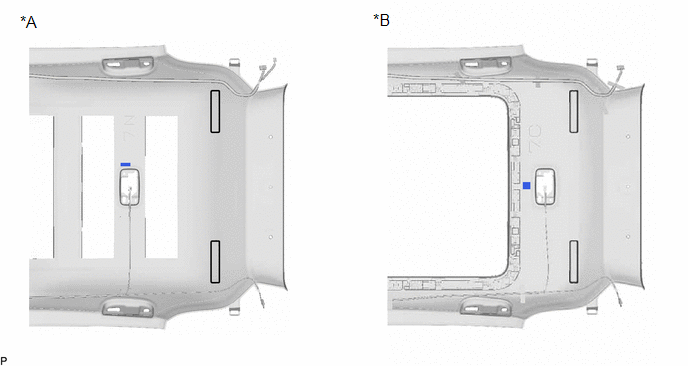

  1. REMOVE CENTER ROOF HEADLINING PAD
    1. Remove the center roof headlining pad.
      GTY1011229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For Normal Roof *B For Glass Roof

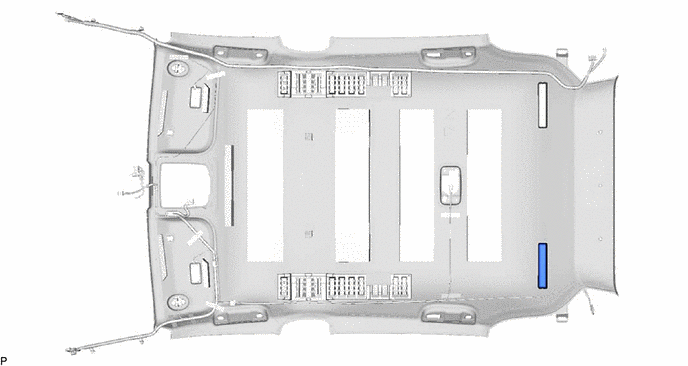

  2. REMOVE ROOF HEADLINING PAD LH
    1. Remove the roof headlining pad LH.
      GTY1013192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ROOF HEADLINING PAD RH

    HINT:

    Use the same procedure as for the LH side.

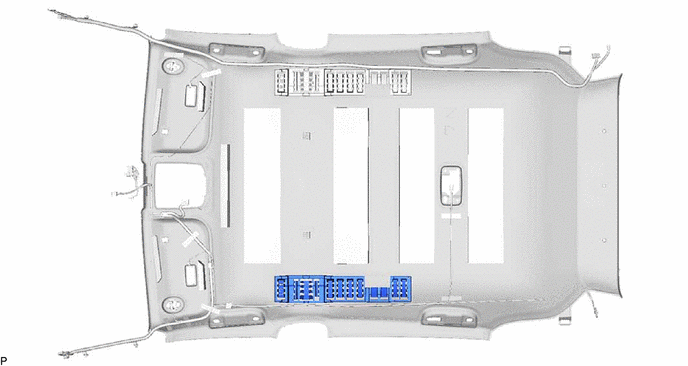

  4. REMOVE NO. 2 ROOF HEADLINING SUPPORT (for Normal Roof)
    1. Remove the No. 2 roof headlining support.
      GTY1012132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 ROOF HEADLINING SUPPORT (for Normal Roof)

    HINT:

    Use the same procedure as for the No. 2 roof headlining support.

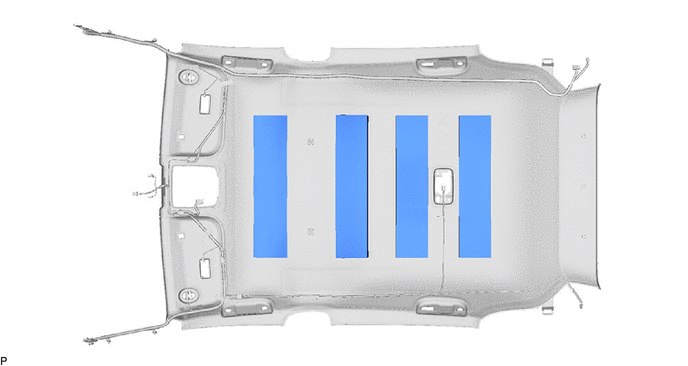

  6. REMOVE NO. 1 ROOF SILENCER PAD (for Normal Roof)
    1. Remove the 4 No. 1 roof silencer pads.
      GTY1013497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

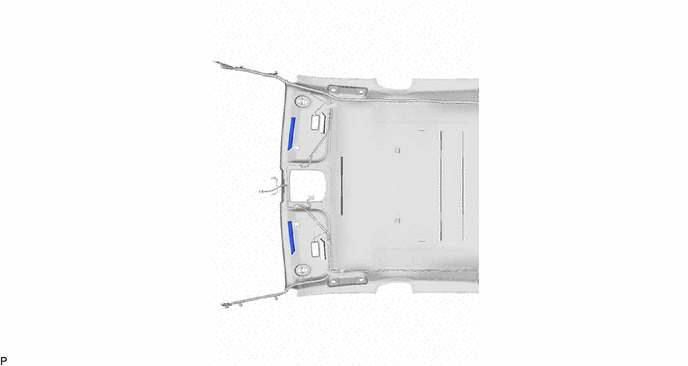

  7. REMOVE FRONT SIDE ROOF HEADLINING PAD (for Cold Area Specification Vehicles)
    1. Remove the 2 front side roof headlining pads.
      GTY1008550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

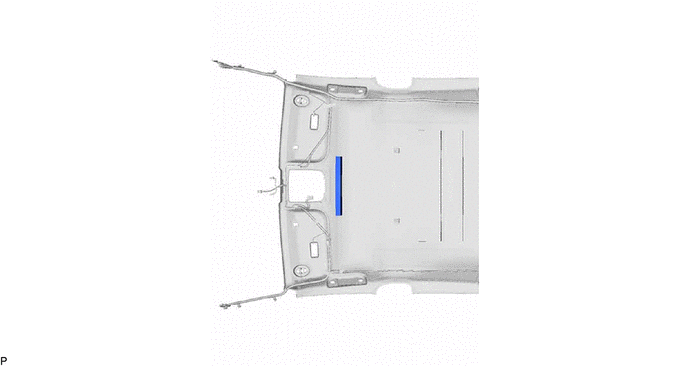

  8. REMOVE ROOF HEADLINING END PAD (for Cold Area Specification Vehicles with Normal Roof)
    1. Remove the roof headlining end pad.
      GTY1007512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

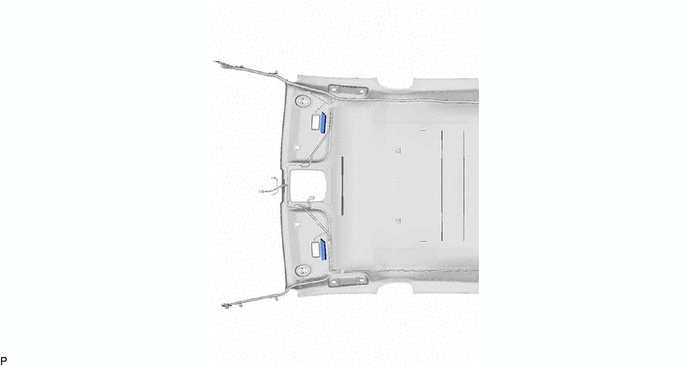

  9. REMOVE ROOF HEADLINING PAD (for Cold Area Specification Vehicles with Normal Roof)
    1. Remove the 2 roof headlining pads.
      GTY1008549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 ROOF WIRE (for Normal Roof)
    1. Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining assembly.
      GTY1014188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For LH side *B For RH side
      *a 90° - -
      Rotation Direction - -

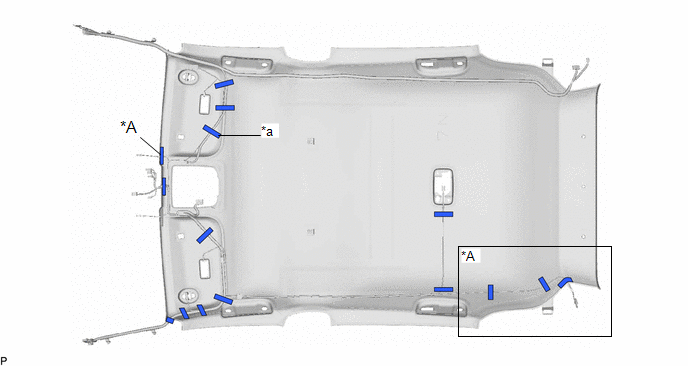

    2. Remove the adhesive tape from the roof headlining assembly.
      GTY1015937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Digital Inner Mirror - -
      *a Adhesive Tape - -
    3. Remove the No. 1 roof wire from the roof headlining assembly.
  11. REMOVE NO. 1 ROOF WIRE (for Glass Roof)

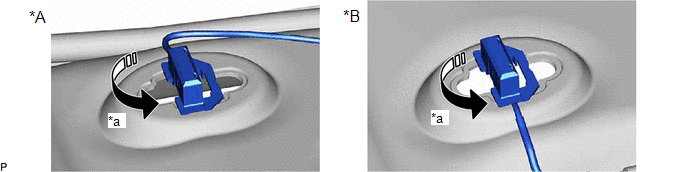

    1. Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining assembly.
      GTY1014185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For LH side *B For RH side
      *a 90° - -
      Rotation Direction - -

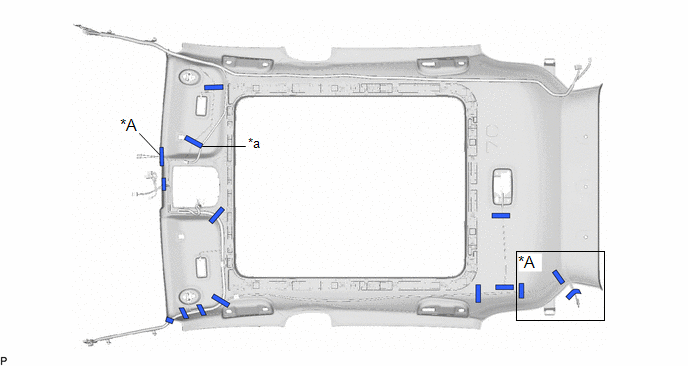

    2. Remove the adhesive tape from the roof headlining assembly.
      GTY1016221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Digital Inner Mirror - -
      *a Adhesive Tape - -
    3. Remove the No. 1 roof wire from the roof headlining assembly.
  12. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    For Normal Roof:

    Refer to PROCEDURE - Step 2

    For Glass Roof:

    Refer to PROCEDURE - Step 3
