Reassembly [07/2020 - ]: Procedure

  1. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

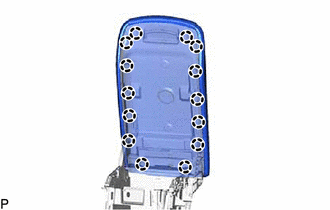

    1. Engage the 14 claws to install the console compartment door sub-assembly.
      GTY1014317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 CONSOLE BOX DUCT
    1. Engage the 2 guides to install the No. 3 console box duct.
      GTY1012343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 CONSOLE BOX SUPPORT
    1. Engage the 2 guides to install the No. 4 console box support.
      GTY1012346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

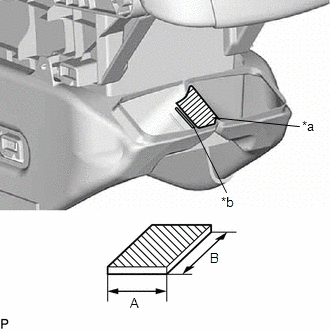

    2. Apply new nonwoven tape within the reference line as shown in the illustration.
      GTY1012529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nonwoven Tape
      *b Line

      HINT:

      Cut the nonwoven tape to the size shown in the table below.

      Nonwoven Tape Size

      Area Dimension
      A 40 mm (1.57 in.)
      B 40 mm (1.57 in.)
  4. INSTALL NO. 1 BOX SIDE PANEL
    1. Engage the 6 claws to install the No. 1 box side panel.
      GTY1012360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 BOX SIDE PANEL
    1. Engage the 6 claws to install the No. 2 box side panel.
      GTY1012363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CONSOLE BOX RETAINER
    1. Engage the 6 claws to install the console box retainer.
      GTY1012367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 CONSOLE BOX DUCT
    1. Engage the guide.
      GTY1012368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 console box duct with the clip.
  8. INSTALL NO. 1 POWER OUTLET SOCKET COVER

    Refer to PROCEDURE - Step 1

  9. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

    Refer to PROCEDURE - Step 2

  10. INSTALL NO. 3 BOX PANEL
    1. Engage the 3 guides, 2 claws and 2 clips to install the No. 3 box panel.
      GTY1012381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Engage the 2 guides and 8 clips to install the rear upper console panel sub-assembly.
      GTY1012396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    1. Engage the 2 guides.
      GTY1012397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the instrument panel cup holder assembly with the 6 screws.
      GTY1013238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL CONSOLE BOX POCKET GARNISH
    1. Engage the 10 claws to install the console box pocket garnish.
      GTY1014321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 2 CONSOLE BOX SUPPORT
    1. Engage the 5 guides, 3 claws and clip.
      GTY1014676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 console box support with the 4 screws.
      GTY1013636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 CONSOLE BOX SUPPORT
    1. Engage the 5 guides, 3 claws and clip.
      GTY1013638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 1 console box support with the 4 screws.
      GTY1013657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL CONNECTOR BRACKET (w/o Illumination)
    1. Engage the clamp to install the connector bracket.
      GTY1012400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Illumination)

    Refer to PROCEDURE - Step 1
