Components [07/2020 - ]

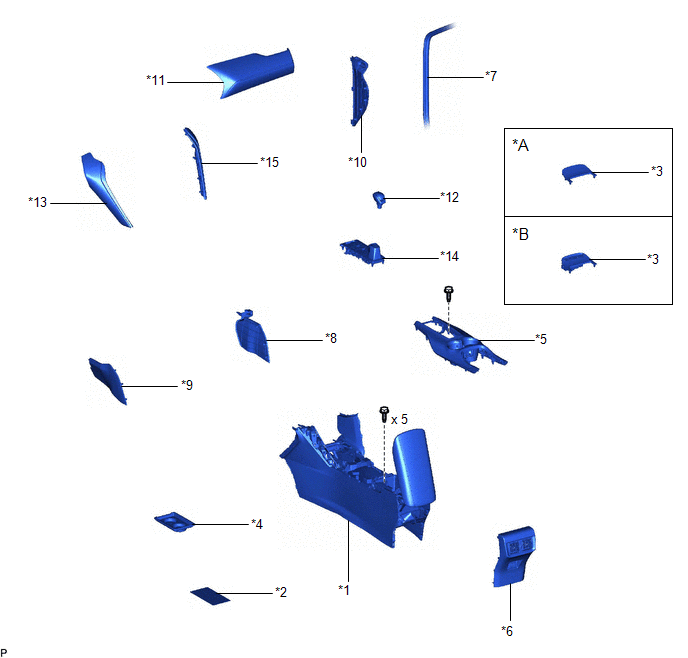

Fig 1: Front Console Box Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Seat Heater System	*B	w/ Seat Heater System
*1	CONSOLE BOX ASSEMBLY	*2	CONSOLE BOX CARPET
*3	CONSOLE BOX ORNAMENT	*4	CONSOLE BOX POCKET
*5	CONSOLE CUP HOLDER BOX SUB-ASSEMBLY	*6	CONSOLE REAR END PANEL SUB-ASSEMBLY
*7	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*8	FRONT NO. 1 CONSOLE BOX INSERT
*9	FRONT NO. 2 CONSOLE BOX INSERT	*10	NO. 1 INSTRUMENT SIDE PANEL
*11	NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH	*12	SHIFT LEVER KNOB SUB-ASSEMBLY
*13	UPPER CONSOLE COVER	*14	UPPER CONSOLE PANEL SUB-ASSEMBLY
*15	UPPER NO. 2 CONSOLE PANEL GARNISH	-	-

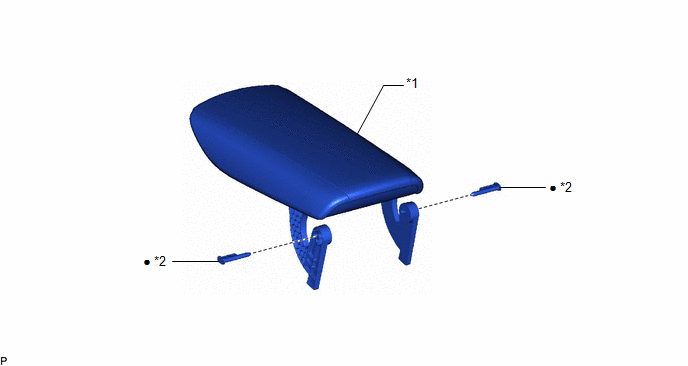

Fig 2: Front Console Box Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR CONSOLE ARMREST ASSEMBLY	*2	CONSOLE COMPARTMENT DOOR HINGE SHAFT
•	Non-reusable part	-	-

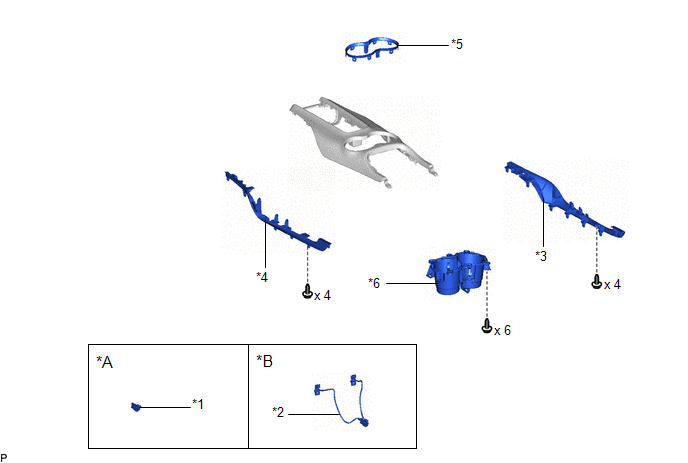

Fig 3: Front Console Box Replacement Components (3 Of 4)

Callout	Description	Callout	Description
*A	w/o Illumination	*B	w/ Illumination
*1	CONNECTOR BRACKET	*2	CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
*3	NO. 1 CONSOLE BOX SUPPORT	*4	NO. 2 CONSOLE BOX SUPPORT
*5	CONSOLE BOX POCKET GARNISH	*6	INSTRUMENT PANEL CUP HOLDER ASSEMBLY

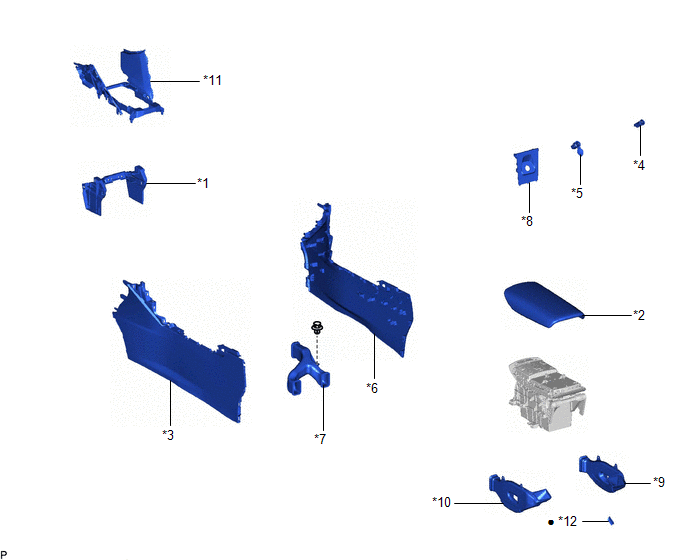

Fig 4: Front Console Box Replacement Components (4 Of 4)

Callout	Description	Callout	Description
*1	CONSOLE BOX RETAINER	*2	CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
*3	NO. 1 BOX SIDE PANEL	*4	NO. 1 POWER OUTLET SOCKET ASSEMBLY
*5	NO. 1 POWER OUTLET SOCKET COVER	*6	NO. 2 BOX SIDE PANEL
*7	NO. 2 CONSOLE BOX DUCT	*8	NO. 3 BOX PANEL
*9	NO. 3 CONSOLE BOX DUCT	*10	NO. 4 CONSOLE BOX SUPPORT
*11	REAR UPPER CONSOLE PANEL SUB-ASSEMBLY	*12	NONWOVEN TAPE
•	Non-reusable part	-	-
