Home >> Toyota >> 2021 >> Venza LE >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> HEADUP Display System - Diagnostic Codes >> HEADUP Display System >> DTC B1321-87: Lost Communication with EMV Missing Message [10/2022 - ] >> Wiring Diagram

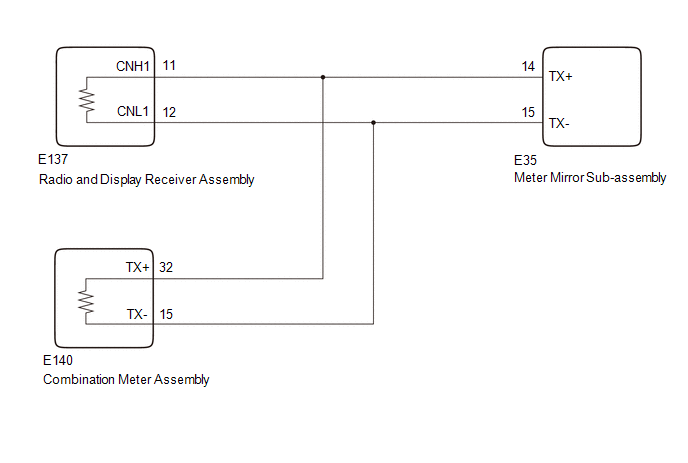

DTC B1321-87: Lost Communication with EMV Missing Message [10/2022 - ]: Wiring Diagram

  1. GTY1112278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
