Installation [07/2020 - ]: Procedure

  1. INSTALL FAN AND GENERATOR V BELT
    WARNING:
    • Component with preload.

      Danger of injury!

      • Reduce preload as far as possible before disassembly. Relieve component.

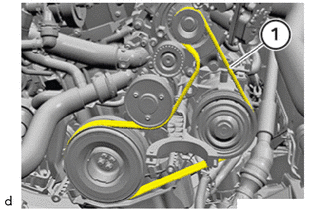

    1. Feed in the fan and generator V belt (1) and install it.
      Fig 1: B46 Drive Belt Routing
      GTY994403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

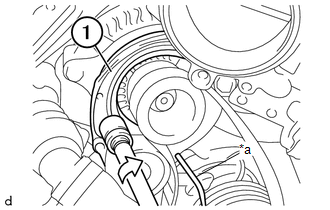

    2. Using 16 mm socket, raise the preloading on the belt tensioner (1) in the direction of arrow.
      GTY995046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 4 mm Hexagon Wrench
    3. Remove the 4 mm hexagon wrench from belt tensioner (1).
  2. INSTALL WATER PUMP SUB-ASSEMBLY

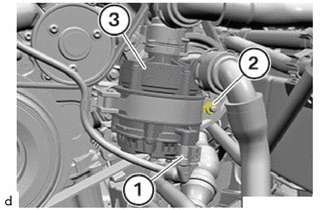

    1. Feed in and install the water pump sub-assembly (3).
      GTY994836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the nut (2) on the holder.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    3. Connect and lock the connector (1).
    4. Make sure the connector (1) engages audibly.
  3. INSTALL CYLINDER BLOCK COVER

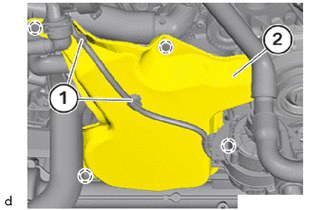

    1. Thread in and position the cylinder block cover (2).
      GTY994424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fit all expanding rivets in marked areas.
    3. Secure clamps (1).
  4. INSTALL NO. 2 AIR CLEANER HOSE

    Refer to INSTALLATION [07/2020 - ]

  5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 40
