Installation [07/2020 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

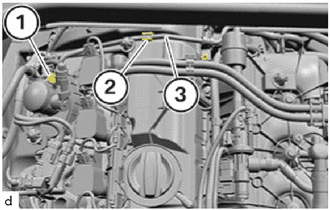

- Guide the fuel feed line (3) into the holder (2) and install.
- Tighten the union nut (1) hand-tight.
- Tighten the union nut (1) with the 17 mm union nut wrench.
Specified tightening torque
Torque: 33 N.m (337 kgf/cm, 24 ft.lbf)
NOTE:Do not adjust the torque in the loosening direction.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [03/2019 - ]
- When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 30 N.m (306 kgf/cm, 22 ft.lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

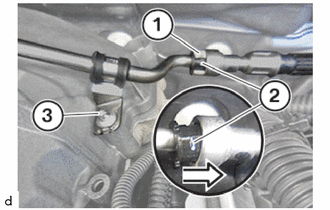

- Slide the fuel feed line in the direction of the arrow into the snap fastener (2) and lock.
- The fuel feed line must engage audibly.
- Attach and lock the clamp (1).
- Tighten down screw (3).
Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)
- Guide the fuel feed line (3) into the holder (2) and install.
- INSTALL IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL REAR CYLINDER BLOCK COVER
Refer to PROCEDURE - Step 39
- INSTALL COWL TOP VENTILATOR LOUVER PROTECTOR
Refer to PROCEDURE - Step 42
- INSTALL UPPER FRONT SUSPENSION CENTER BRACE
Refer to PROCEDURE - Step 43
- INSTALL HOOD TO COWL TOP SEAL
Refer to PROCEDURE - Step 44
- INSTALL FRONT WIPER MOTOR AND LINK ASSEMBLY
Refer to INSTALLATION [03/2019 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [07/2020 - ]
