Installation [07/2020 - ]: Procedure

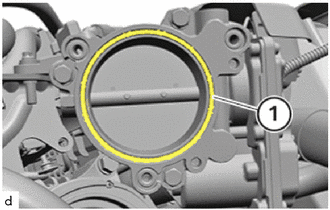

1. Replace the throttle body gasket (1).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

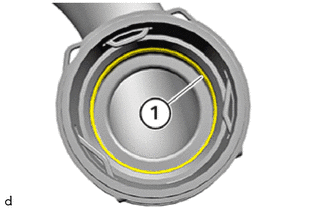

   Check the gasket (1) on the No. 2 air cleaner hose for damage and replace it, if necessary.

3. Insert and install No. 2 air cleaner hose.
4. Lock the clamp on the turbocharger sub-assembly.

   HINT:

   The clamp must engage audibly.

5. Tighten T30 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

6. Connect and lock the connector on the intake air temperature sensor.
7. Connect and lock the connector on the air pressure sensor.

   HINT:

   All connectors must audibly engage.

8. Secure clamps.

See step  1
