Components [03/2020 - ]

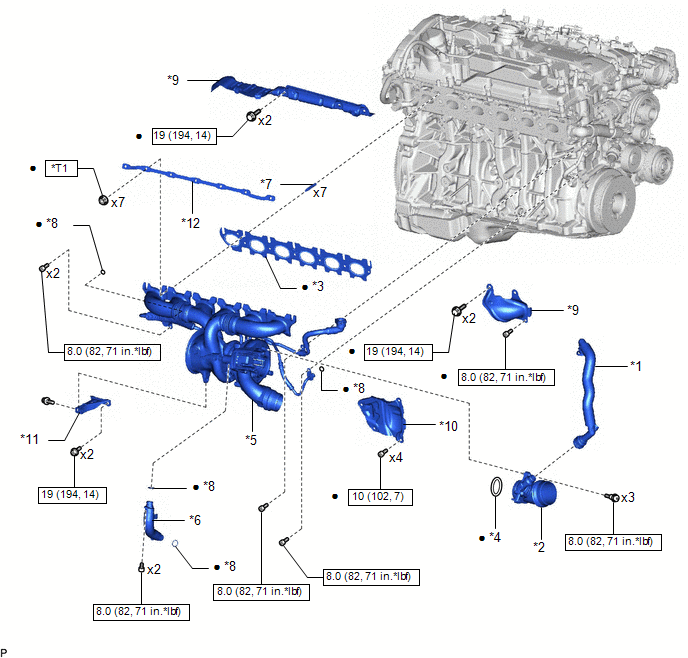

Fig 1: Turbocharger Replacement Components With Torque Specifications [03/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	VENTILATION HOSE	*2	COMPRESSOR INLET ELBOW
*3	EXHAUST MANIFOLD TO HEAD GASKET	*4	COMPRESSOR INLET GASKET
*5	TURBOCHARGER SUB-ASSEMBLY	*6	OUTLET TURBO OIL PIPE
*7	STUD BOLT	*8	O-RING
*9	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	*10	NO. 2 HEAT INSULATOR
*11	TURBOCHARGER STAY	*12	SLIDE RAIL
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*T1	1st: 10 (102) 2nd: 10 (102) 3rd: 16 (164) 4th: 16 (164) 5th: 16 (164)	-	-

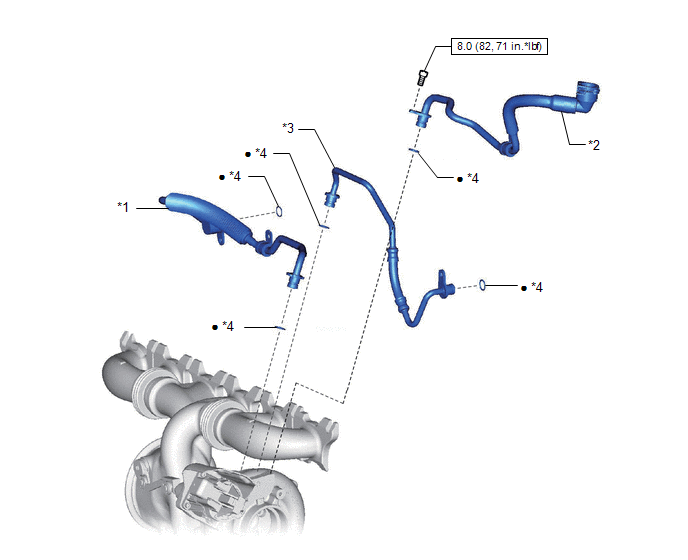

Fig 2: Turbocharger Replacement Components With Torque Specifications [03/2020 - ] (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 1 TURBO WATER PIPE SUB-ASSEMBLY	*2	NO. 2 TURBO WATER PIPE SUB-ASSEMBLY
*3	INLET TURBO OIL PIPE SUB-ASSEMBLY	*4	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
