Installation [03/2019 - 03/2020]: Procedure
- INSTALL TURBOCHARGER ACTUATOR AND LINK ASSEMBLY NOTE:
- Damage to the turbocharger actuator and link assembly and the mechanical connection.
- Improper handling of the turbocharger actuator and link assembly can lead to malfunctions or failure of the turbocharger actuator and link assembly.
- Avoid exposure of lateral forces to the control rod of the turbocharger actuator and link assembly.

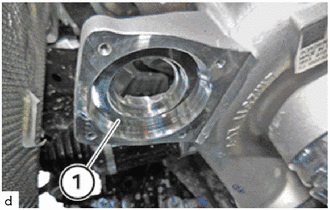

- Check contact surface (1) on turbocharger sub-assembly for contamination and clean if necessary.

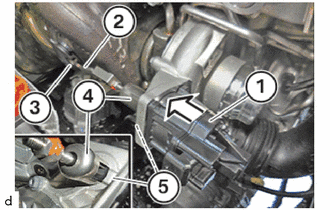

- Guide the turbocharger actuator and link assembly (1) into the bore hole of the compressor housing (5) in direction of arrow and position it.
- Ensure that the heat shield (4) is positioned correctly on the compressor housing (5).
- Carefully install the control rod (2) of the turbocharger actuator and link assembly (1) on the lever of the wastegate valve (3).
HINT:
Any effect of lateral force on the control rod (2) must be avoided.
- Replace the T25 bolts.
HINT:
The T25 bolts are included in the repair kit.
- Hand-tighten the bolts (1) on the turbocharger actuator and link assembly (2).
- Diagonally tighten the bolts (1) on the turbocharger actuator and link assembly (2).
Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)
- Replace the retaining clip.
HINT:
The retaining clip is included in the repair kit.
- Mount the retaining clip.
HINT:
Make sure the retaining clip engages audibly.
- Connect and lock the connector.
HINT:
Make sure the connector engages audibly.
- ADJUST TURBOCHARGER ACTUATOR AND LINK ASSEMBLY
- Connect the diagnosis system.
- INSTALL VENTILATION HOSE
See step 2
- INSTALL AIR CLEANER HOSE ASSEMBLY
Refer to INSTALLATION [03/2019 - ]
