Components [03/2019 - ]

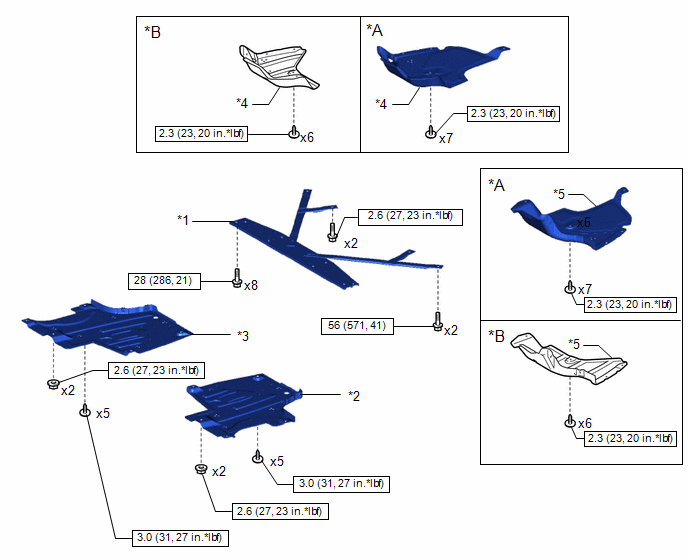

Fig 1: Tail Exhaust Pipe Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Type A	*B	for Type B
*1	REAR FLOOR PANEL BRACE	*2	REAR FLOOR SIDE MEMBER COVER LH
*3	REAR FLOOR SIDE MEMBER COVER RH	*4	REAR UNDERBODY PROTECTOR RH
*5	REAR UNDERBODY PROTECTOR LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

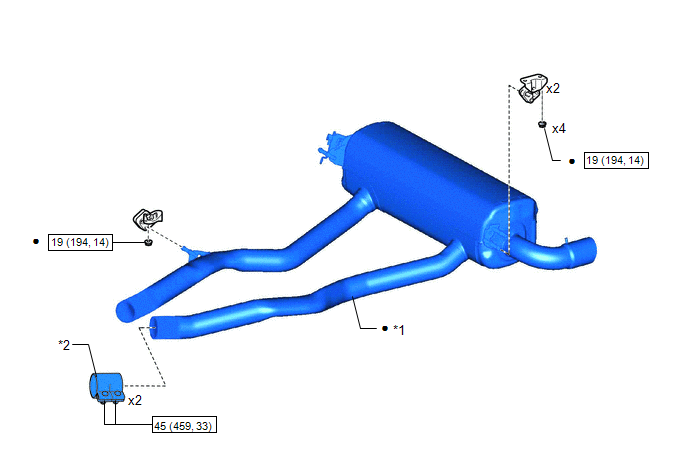

Fig 2: Tail Exhaust Pipe Assembly Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	EXHAUST TAIL PIPE ASSEMBLY	*2	REAR NO. 1 EXHAUST TAIL PIPE CLAMP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
