Removal [03/2019 - 03/2020]: Procedure

  1. REMOVE TURBOCHARGER SUB-ASSEMBLY

    Refer to REMOVAL [03/2019 - 03/2020]

  2. REMOVE NO. 2 TURBO WATER PIPE SUB-ASSEMBLY

    See step  2

  3. REMOVE INLET TURBO OIL PIPE SUB-ASSEMBLY

    See step  3

  4. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    WARNING:
    • Hot fluids.

      Risk of scalding!

      • Conduct all work in the vehicle wearing appropriate personal protective equipment only.

    HINT:

    Collect and dispose of emerging fluids. Observe country specific waste disposal regulations.

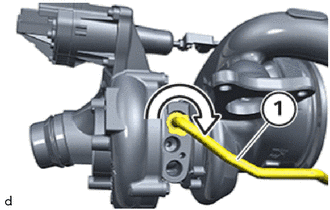

    1. Turn the No. 1 turbo water pipe sub-assembly (1) in direction of arrow and remove to the top.
      GTY946071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
