Installation [03/2019 - 03/2020]: Procedure

  1. INSTALL NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. Replace O-rings (1) and (2).
      GTY945879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

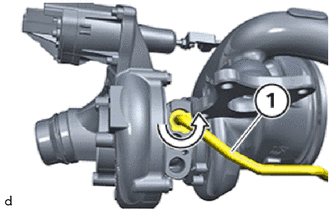

    2. Insert the No. 1 turbo water pipe sub-assembly (1) into the turbocharger sub-assembly and turn it carefully in direction of arrow to the limit position.
      GTY946089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INLET TURBO OIL PIPE SUB-ASSEMBLY

    See step  1

  3. INSTALL NO. 2 TURBO WATER PIPE SUB-ASSEMBLY

    See step  1

  4. INSTALL TURBOCHARGER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2019 - 03/2020]
