Components [03/2019 - ]

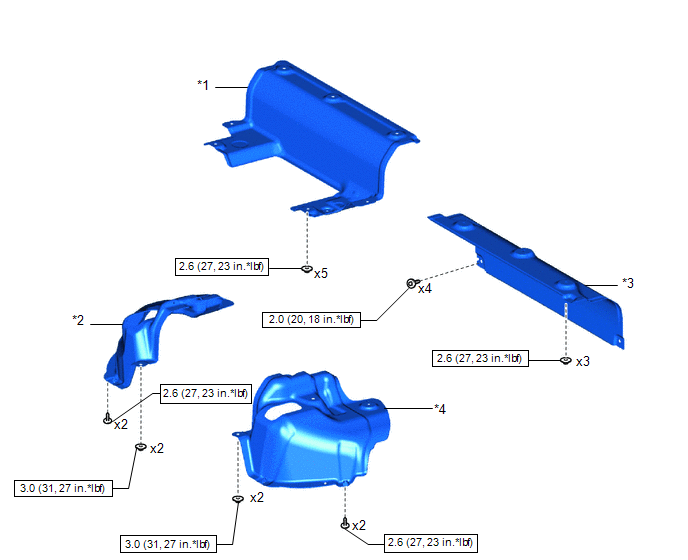

Fig 1: Main Muffler Heat Insulator Replacement Components With Torque Specifications
GTY884450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MAIN MUFFLER HEAT INSULATOR *2 MAIN MUFFLER HEAT INSULATOR RH
*3 REAR NO. 2 FLOOR HEAT INSULATOR SUB-ASSEMBLY *4 MAIN MUFFLER HEAT INSULATOR LH
N.m (kgf/cm, ft.lbf): Specified torque - -
