Components [03/2019 - ]

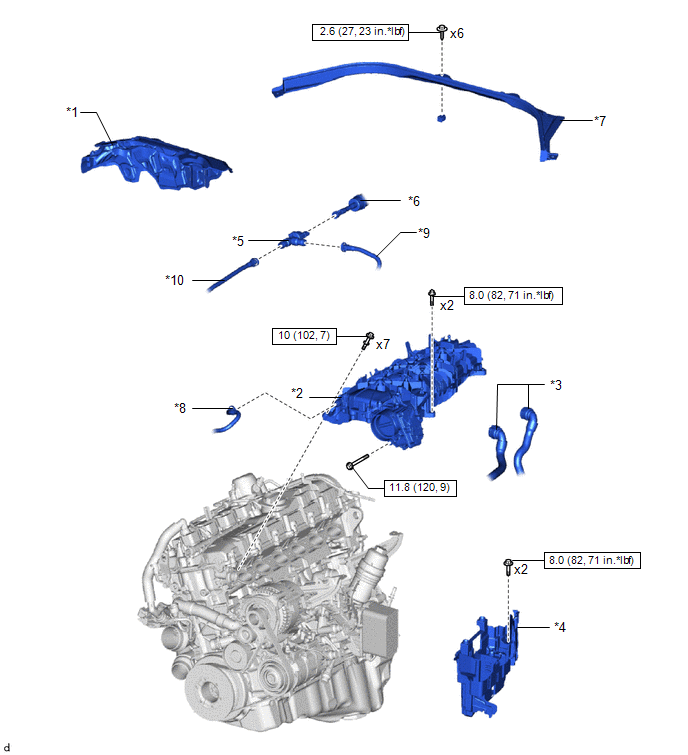

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE COVER	*2	INTAKE MANIFOLD
*3	WATER BY-PASS HOSE	*4	ENGINE ROOM ECU BOX
*5	NO. 1 CHECK VALVE	*6	NO. 2 FUEL VAPOR FEED HOSE
*7	COWL TOP VENTILATOR LOUVER PROTECTOR	*8	FUEL SUCTION TUBE SUB-ASSEMBLY
*9	NO. 3 FUEL VAPOR FEED HOSE	*10	NO. 1 FUEL VAPOR FEED HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

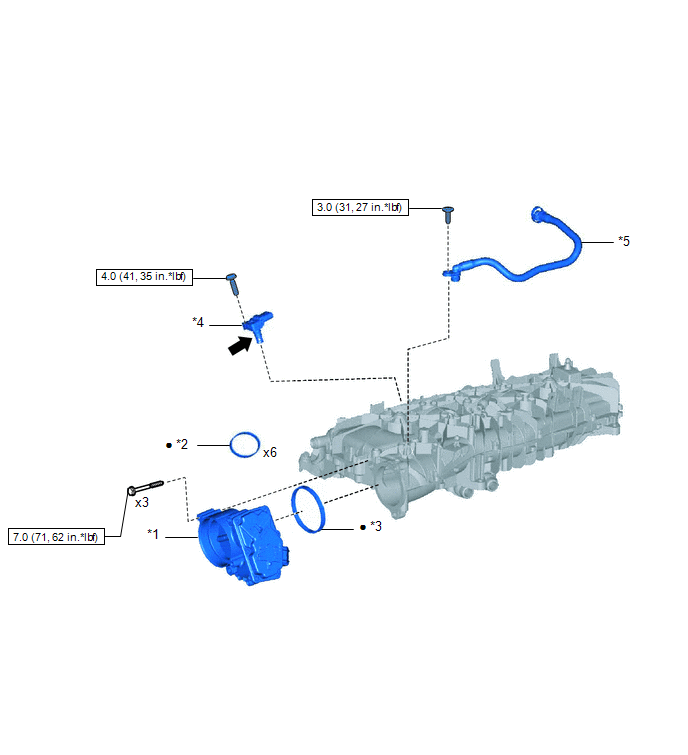

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	THROTTLE BODY WITH MOTOR ASSEMBLY	*2	NO. 1 INTAKE MANIFOLD TO HEAD GASKET
*3	THROTTLE BODY GASKET	*4	VACUUM SENSOR
*5	NO. 3 FUEL VAPOR FEED HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Syntheso glep 1 lubricating grease	-	-
