Installation [03/2019 - 03/2020]: Procedure
- INSTALL INLET TURBO OIL PIPE SUB-ASSEMBLY
- Fill turbocharger sub-assembly up to the top with engine oil using the inlet turbo oil pipe sub-assembly connection.
Engine oil
Toyota Genuine Motor Oil SN 0W-20 C5 for GR Toyota Supra
HINT:
- Technically suitable engine oils for BMW Group engines
- Observe the sign in the engine compartment! Only pour in approved engine oil with the correct SAE viscosity classification.

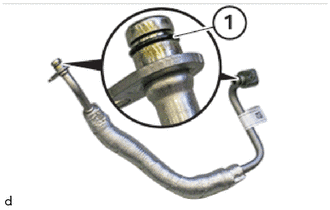

- Replace O-rings (1).
- Position the inlet turbo oil pipe sub-assembly.
- Fill turbocharger sub-assembly up to the top with engine oil using the inlet turbo oil pipe sub-assembly connection.
- INSTALL NO. 2 TURBO WATER PIPE SUB-ASSEMBLY
See step 1
- INSTALL TURBOCHARGER SUB-ASSEMBLY
Refer to INSTALLATION [03/2019 - 03/2020]
