Components [03/2019 - 03/2020]

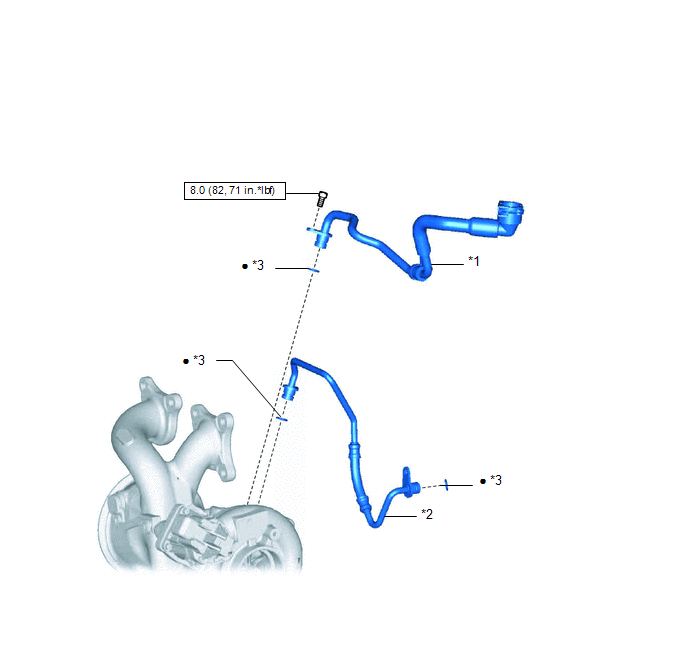

Fig 1: Inlet Turbo Oil Pipe Replacement Components With Torque Specifications [03/2019 - 03/2020]
GTY943070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 TURBO WATER PIPE SUB-ASSEMBLY *2 INLET TURBO OIL PIPE SUB-ASSEMBLY
*3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
