Removal [03/2019 - ]: Procedure

  1. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE VENTILATION HOSE

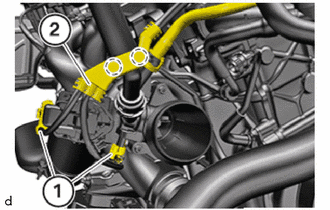

    1. Unlock and disconnect plug connections (1).
      GTY946061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unclip the No. 2 engine wire (2) from the ventilation hose in the marked areas.
    3. Unlock the No. 2 ventilation hose and pull it off the ventilation hose.

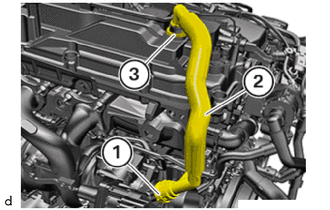

    4. Unlock the lock (1) and disconnect the ventilation hose (2).
      GTY946066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Unlock the lock (3).
    6. Disconnect the ventilation hose (2) from the cylinder head cover sub-assembly and remove.
  3. REMOVE INLET COMPRESSOR ELBOW
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    1. Loosen the T30 bolts (1).
      GTY946209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Guide out the inlet compressor elbow (2) on the turbocharger sub-assembly and remove.
