Components [03/2019 - ]

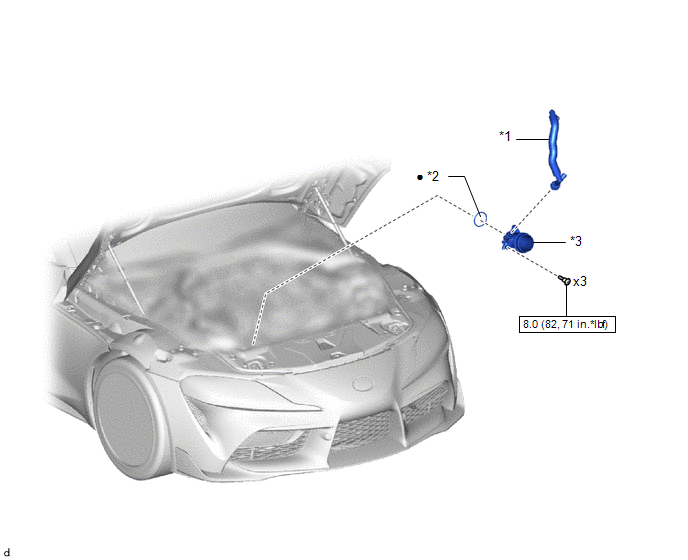

Fig 1: Inlet Compressor Elbow Replacement Components With Torque Specifications
GTY922480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VENTILATION HOSE *2 COMPRESSOR INLET GASKET
*3 INLET COMPRESSOR ELBOW - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
