Removal [03/2019 - ]: Procedure

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH
    1. Remove screws and nuts (arrows).
      GTY943386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Guide the rear floor side member cover LH (1) out.
  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    HINT:

    Use the same procedure as for the rear floor side member cover LH side.

  3. REMOVE REAR FLOOR PANEL BRACE
    WARNING:

    Driving without the rear floor panel brace or rear lower suspension member stopper is not permitted.

    1. Loosen bolts (1).
      GTY1154422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T20 bolts (2).
    3. Unscrew the E14 bolts (3) on the rear lowersuspension member stopper and remove the rear floor panel brace (4).
  4. REMOVE REAR UNDERBODY PROTECTOR LH

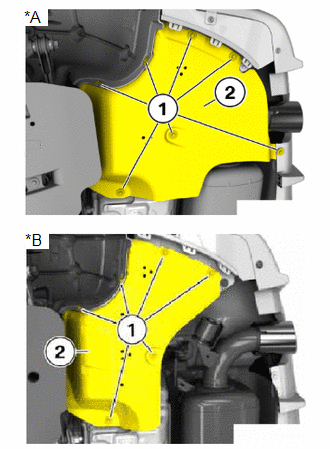

    1. Loosen screws (1).
      GTY1141771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
    2. Remove the rear underbody protector LH (2).
  5. REMOVE REAR UNDERBODY PROTECTOR RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE EXHAUST PIPE ASSEMBLY
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    • Component with heavy weight.

      Danger of injury!

      • Note component's center of gravity.
      • Support component using a jack.
      • Secure component against falling off the jack.
    • Heavy component.

      Heavy components can lead to injury or damage.

      • Remove and install heavy components with the aid of another person/other persons.
    1. Unlock plug connection (1) and disconnect.
      GTY945947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen nuts (1).
      GTY946367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen nuts (1).
      GTY946451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unfasten nut (1).
      GTY946366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

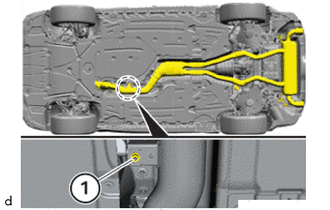

    5. Unfasten nut (1).
      GTY946368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

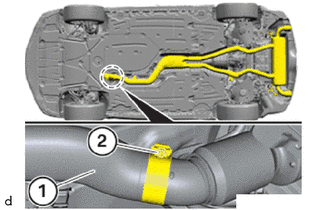

    6. for Ribbon Clamp:
      1. Unscrew nut (2) on the exhaust pipe assembly (1).
        GTY945946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Lower the exhaust pipe assembly (1) with an auxiliary person, guide out and remove.

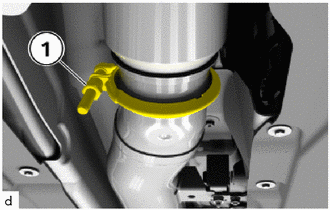

    7. for V-band Clamp:
      GTY946456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 16 mm deep socket wrench, loosen exhaust pipe clamp (1).
      2. Lower the exhaust pipe assembly with an auxiliary person, guide out and remove.
