Components [03/2019 - ]

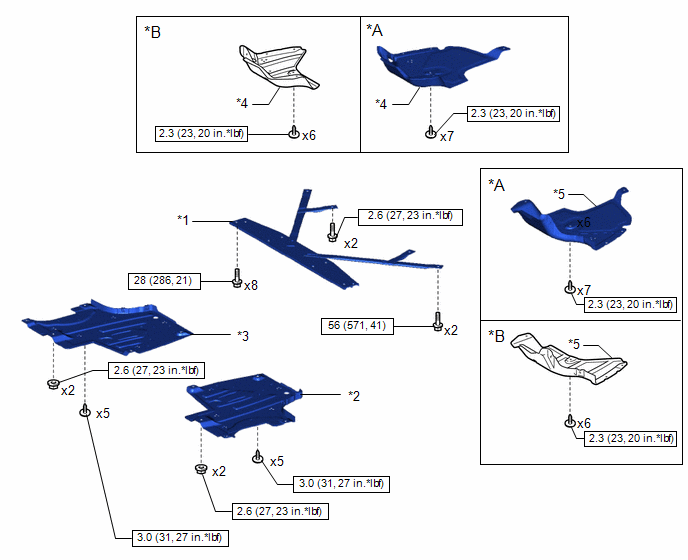

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Type A	*B	for Type B
*1	REAR FLOOR PANEL BRACE	*2	REAR FLOOR SIDE MEMBER COVER LH
*3	REAR FLOOR SIDE MEMBER COVER RH	*4	REAR UNDERBODY PROTECTOR RH
*5	REAR UNDERBODY PROTECTOR LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

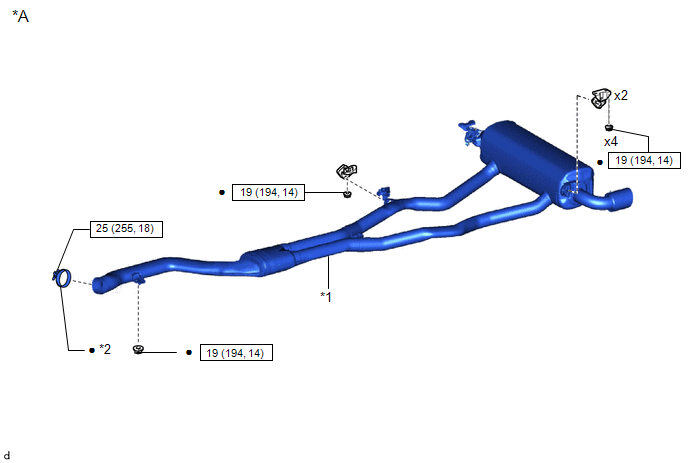

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Ribbon Clamp	-	-
*1	EXHAUST PIPE ASSEMBLY	*2	EXHAUST PIPE CLAMP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

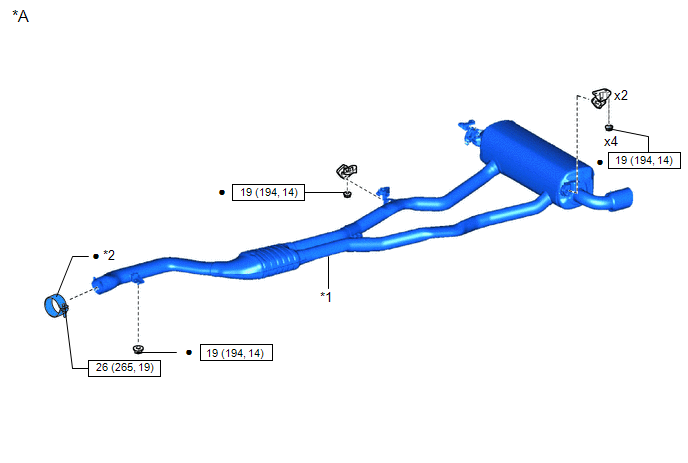

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*A	for V-band Clamp	-	-
*1	EXHAUST PIPE ASSEMBLY	*2	EXHAUST PIPE CLAMP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
